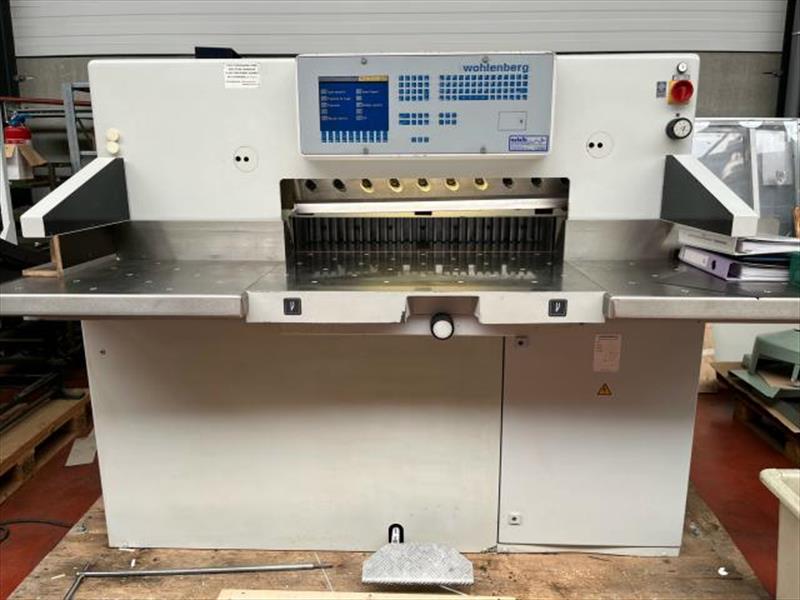

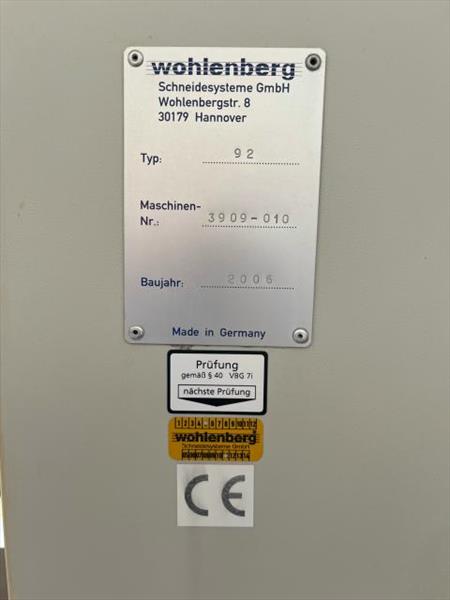

high-speed guillotine WOHLENBERG 92 n°3909-010 year 2006 with PC technology (100% CIP3 compatible),

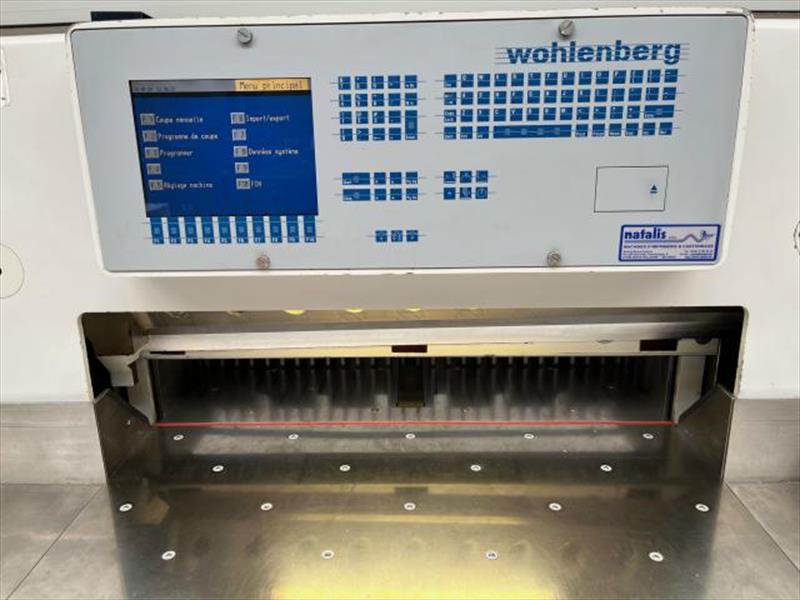

high resolution LCD colour display 211x158 mm), machine frame cast in one piece with fully automatic operation
cutting lenght : 92 cm
up to 1.500 programs storage capacity

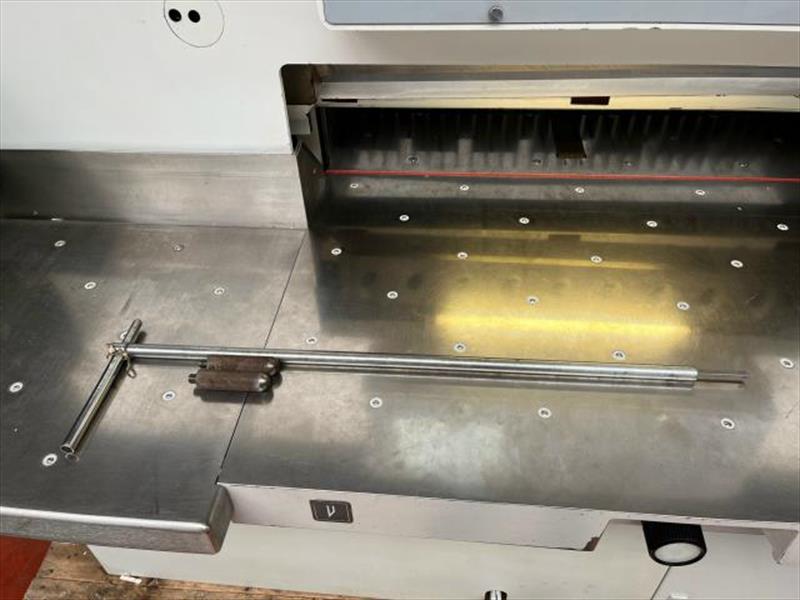

stainless-steel plated airtables
electro-magnetic clutch
safety light barrier with 15 infra-red channels
positioning system
cover guard in plexiglas on rear table
ajdustable hydraulic pressure from 2 to 30 kN
depth on front table : 672 mm, depth of rear table : 928 mm
clamp opening : 126 mm with plate or 130 mm without plate
42 cycles/min.
weight of machine body : 1.220 kg - weight of table : 410 kg = 1.630 kg
power consumption : 5,4 kVA - main motor capacity : 3 kW
Conformity CE-regulations
Machine cleaned, checked and tested
