TRANSPAK CORP. - Taiwan » TP-6000 CE1 2018
» Ref : fa800-03060

Zoom Images
Click to enlarge
Customer feedback :

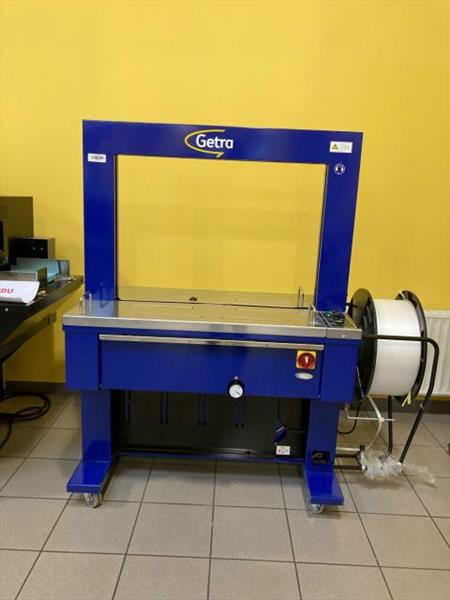

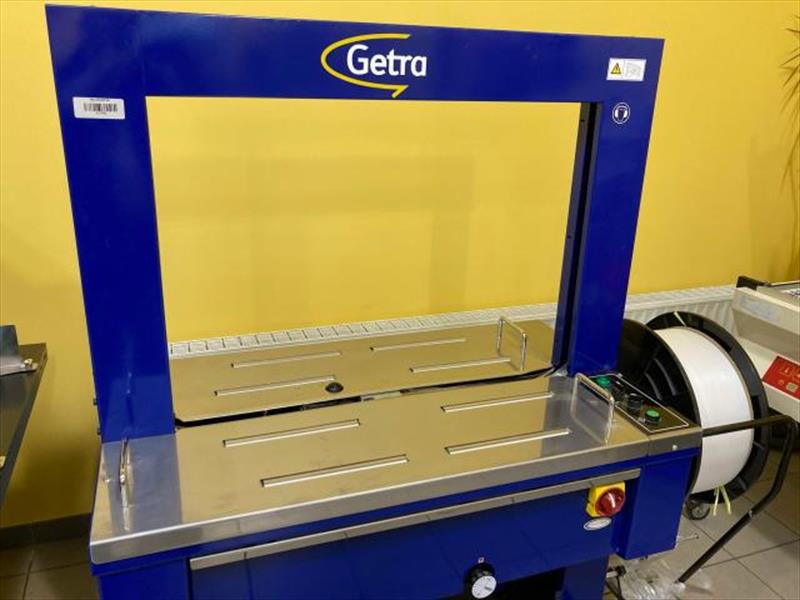

Automatic strapping machine TRANSPACK (GETRAG) TP 6000CE1 n ° 1801027799 year 2018

With an average rate of 28 strapping / minute, the automatic arch strapping machine aims to strap boxes or parcels.

With its coil located on the outside, the TP6000 allows convenient coil replacement.

This strapping device admits a clamping tension of 0 to 70 kg,

ensures a welding of the strip which is carried out by thermo-welding at 280 °

and accepts polypropylene (PP) strip 12 mm wide.

The strapping cycle is carried out in 3 different ways, namely by manually actuating the "start" button next to the arch, automatically using the detection ball located on the worktable or by pressing the removable foot pedal.

Characteristics :

Overall width: 1430 mm

Overall height: 1540 mm

Depth: 620 mm

Table height: 810 mm

Machine weight: 220 kg

Power consumption: 1.2 KW

Minimum package dimension (l x h): 100 X 30 mm

Maximum parcel dimension (l x h): 850 x 600 mm

Sealing method: heat strap width: 8mm to 15.5mm -

strap thickness: 0.55mm to 0.75mm

strap spool diameter: 220 mm

electrical connection: AC 110V / 220V / 230V / 240V (50 / 60Hz), 1 phase

                                          AC 220V / 380V / 400V (50 / 60Hz), 3 phases

Power supply : 220 V.mono

Ambient temperature: 5 ° C ~ 40 ° C

Data sheet

Size : :
Serial Number :
Location :
availability :
Incoterms :
Country of origin :
Spécifications
Speed (S/H) :
Voltage (V) :
Dimensions (L x W x H in cm) :
Net weight (Kg) :
220
Age group :
Year of manufacture :

Excl. 0.00% Tax
Qty :

Choisissez une extension de garantie

Extension de garantie : 5 ans (129 €)
Extension de garantie : 3 ans (89 €)
Aucune extension de garantie
»En savoir +
Request a quote
Ajouter cet article à mes favoris

Attached documents

product brochure ENGL.
