SuperFax Electronic GmbH & Co. Kg, Germany » EC-4500
» Ref : re800-05000

Zoom Images
Click to enlarge
Customer feedback :

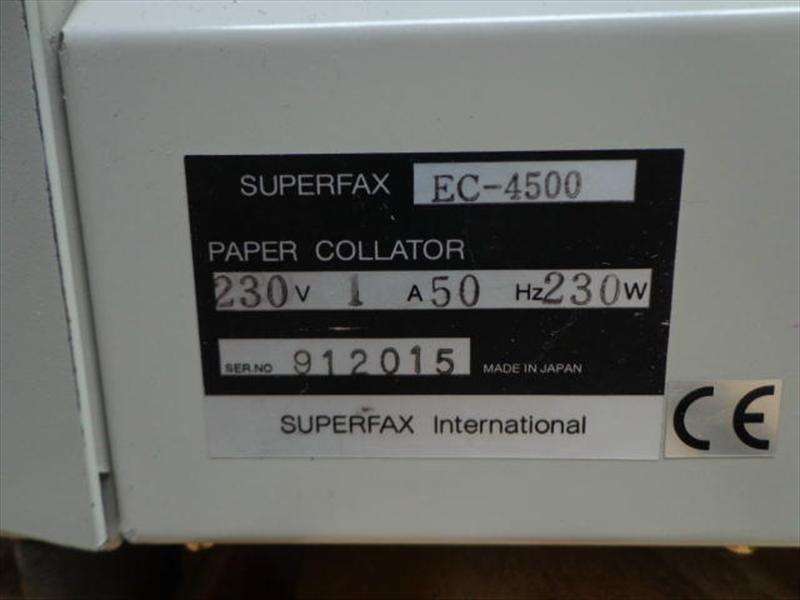

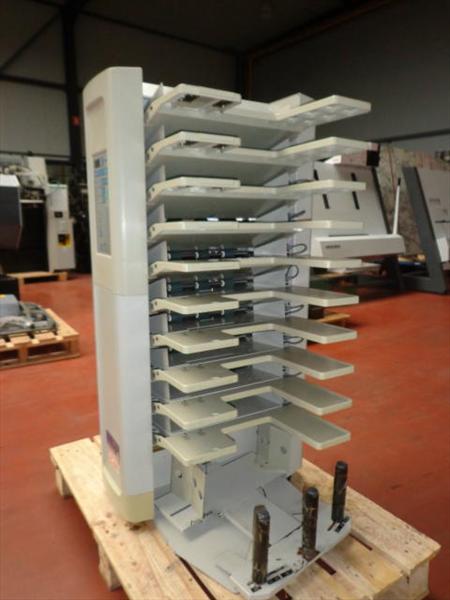

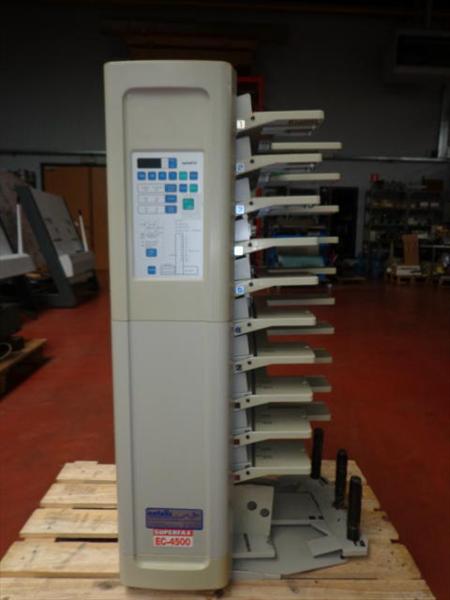

table top collator SUPERFAX EC-4500 n°912015 (made in Japan), 10 bins, for collating all paper sizes from postcard to SRA3 (equivalent to UCHIDA UC-1100)

Paper Sizes : min. 95x150mm, max. SRA3 (328x465 mm)

Paper feeding system : Friction Feed

Paper weight : 35-210 g/sqm

bin capacity : 28 mm (280 sheets 80 gr paper)

Speed :  40 or 60 sets/min (A4 Landscape feeding) up to 3600 sets/H.

Control :     Empty Feed, Paper Jam, Double Feed, No Paper

Programs Alternate, Interleaving, Insertion of Front & Back Covers



Electrical : 110 117 220 230 240V, 50 - 60Hz

Weight  : 76Kg
Dimensions (LxPxH) : 545x740x1 056mm
