RIGO » LAMIBIND 340HM 2014
» Ref : re999-40500

Zoom Images
Click to enlarge
Customer feedback :

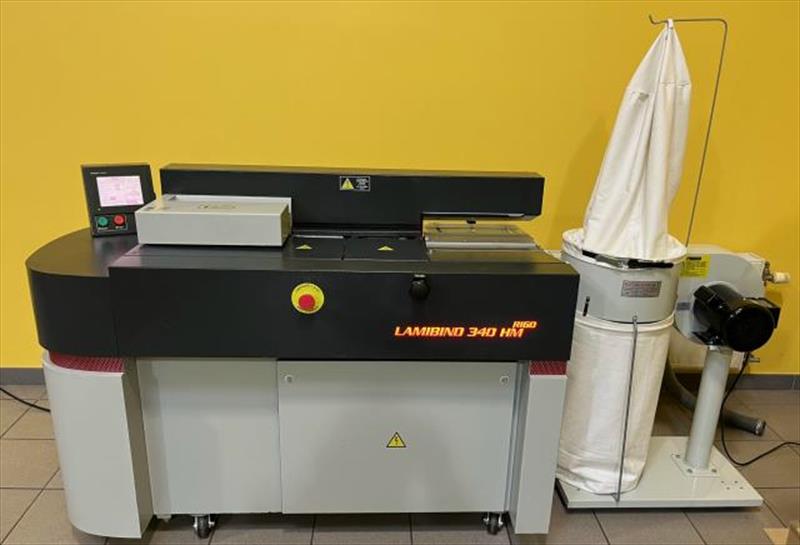

Semi-automatic gluing machine RIGO LAMIBIND 340HM n° 340-0001H year 2014

EVA glue with side gluing,

Working width 340 mm

Widths accepted 100 to 340 mm

Binding capacity 400 sheets 80g/m² (40 mm)

Max number cycles 290/h

Heating temperature 140 to 200°C

Glue tank volume 0.5 L Pre-heating time 15 to 25 minutes

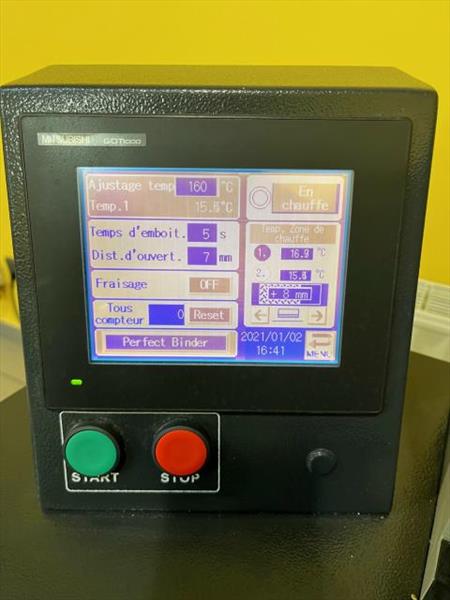

Display Touch screen Temperature adjustment Yes (digital) Safety devices

Emergency stop button

Document detection on trolley

Glue tank opening detection

Power supply 230 V - 50 Hz (10 A)

Consumption 2000 W

Dimensions 1490 x 680 x 1220 mm

Weight 280 kg



Data sheet

Size : :
Serial Number :
availability :
Incoterms :
Country of origin :
Spécifications
Dimensions (L x W x H in cm) :
Net weight (Kg) :
280
