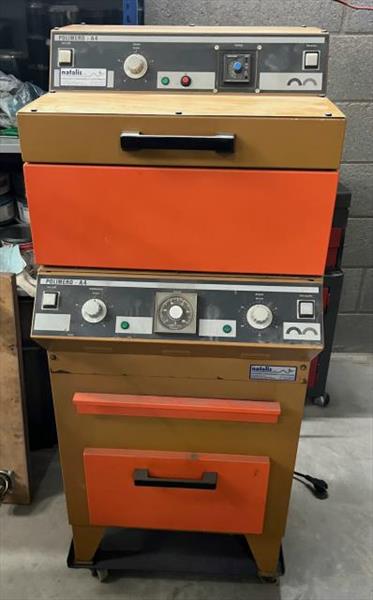

POLIMERO A4 vertical photopolymer combination (exposing machine, washer, dryer) orange model,
for making plates up to 22x32 cm (production of A4 photopolymer printing forms): exposure machine with UV lamps,

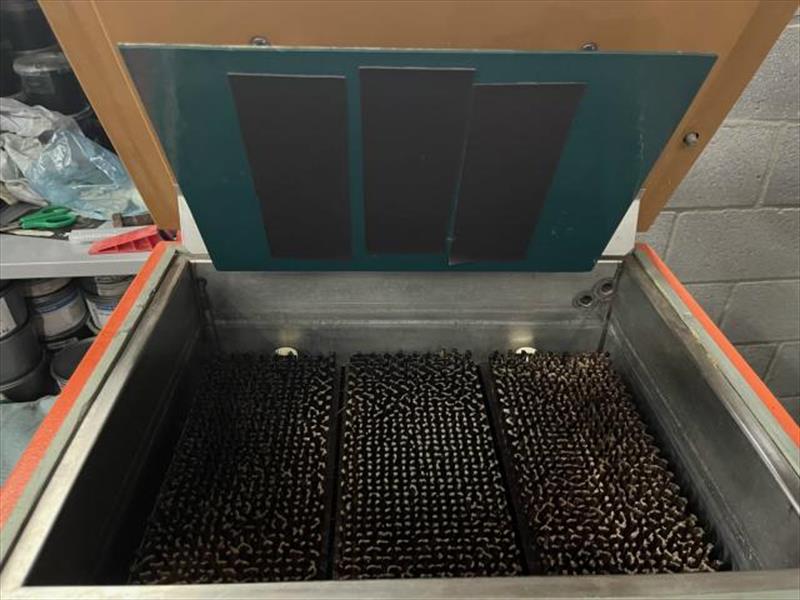

vacuum sheet, vacuum pump, vacuum gauge and timer, engraver with flat brush, circular motion fixing plate above,
temperature adjustment, timer, taps for inlet and outlet, dryer with hot air circulation and exhaust,
two ventilated drawers and timer. Dryer and exposure machine
dimensions: 52x52x83 cm - Weight: 50 kg - Consumption: 5.4A. /1.160 W. -
Engraver dimensions: 52x52x37 cm - Weight: 25 kg -
Consumption: 2.2A /565W For water-washable photopolymers (which replace lead compositions and zinc plates)
and those engraved using a chemical solvent, intended to replace rubber stamps and plates.
Overall dimensions: 52x52x100 cm – net weight: 75 kg
