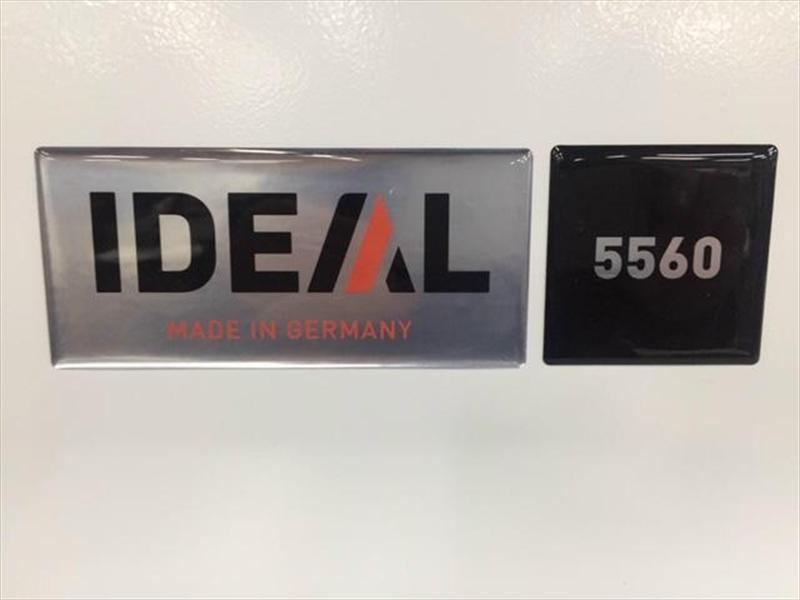

IDEAL » 5560
» Ref : ro100-27100

Zoom Images
Click to enlarge
Customer feedback :

NEW EQUIPMENT - IN DIRECT FROM FACTORY - ON ORDER ONLY !

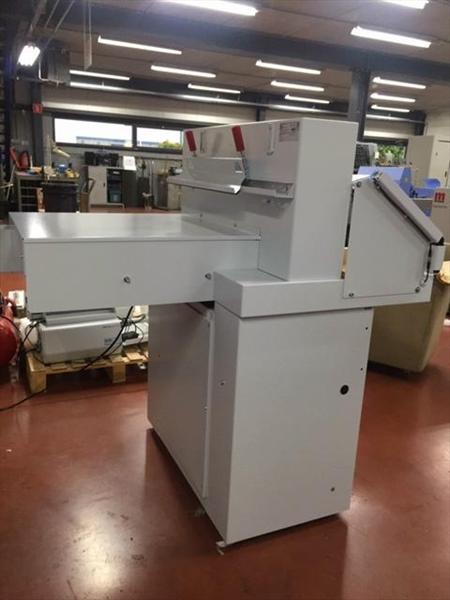

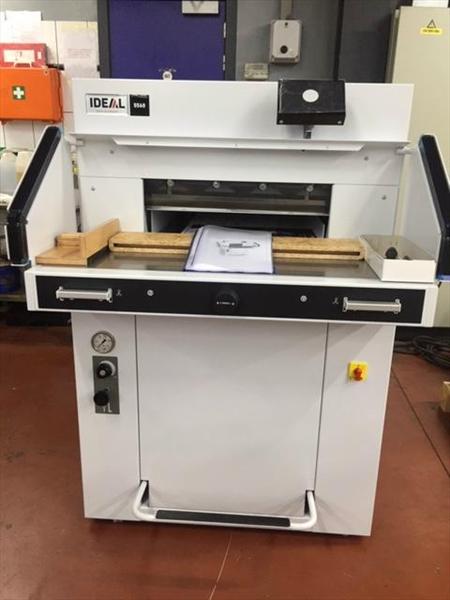

Professional guillotine IDEAL 5560 with hydraulic blade and clamp drive, EASY-CUT, programmable power backgauge with touch pad and IR light beam safety curtain on the front table.

Cutting length: 550 mm
Cutting height: 95 mm
Table depth: 570 mm
Narrow cut: 32 mm

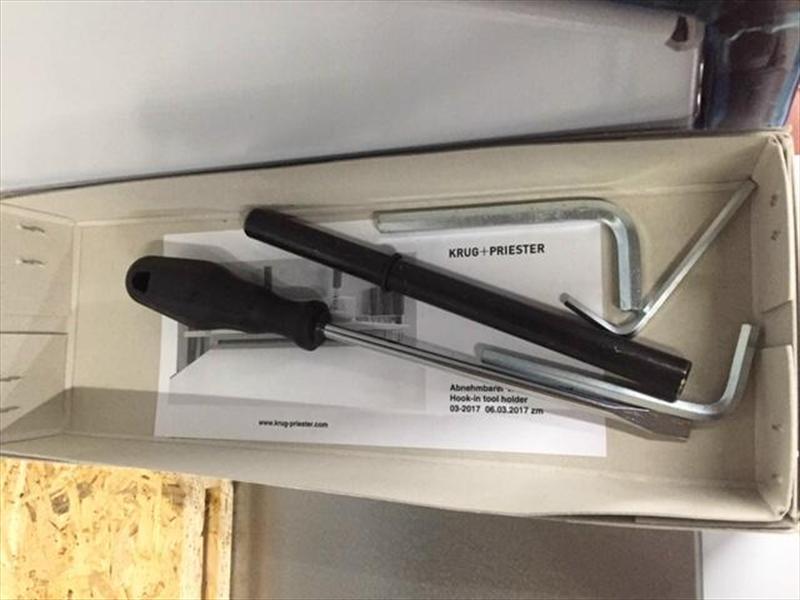

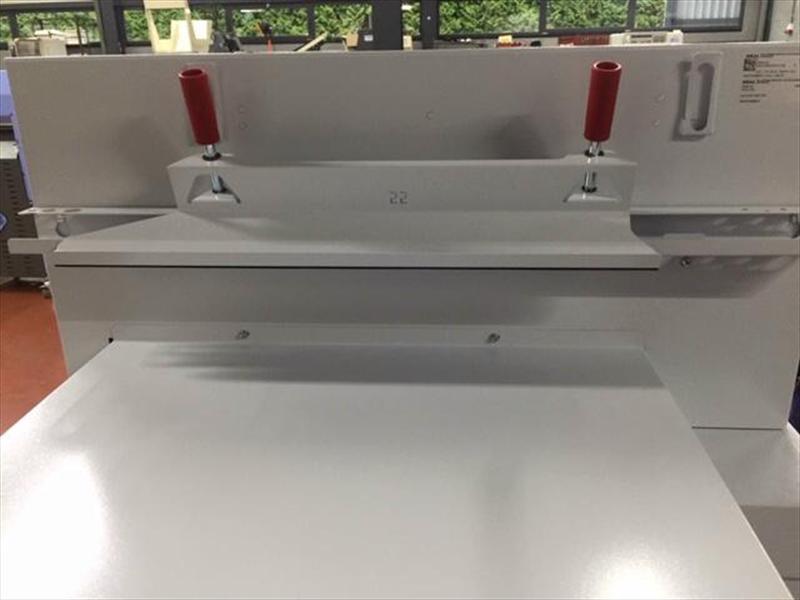

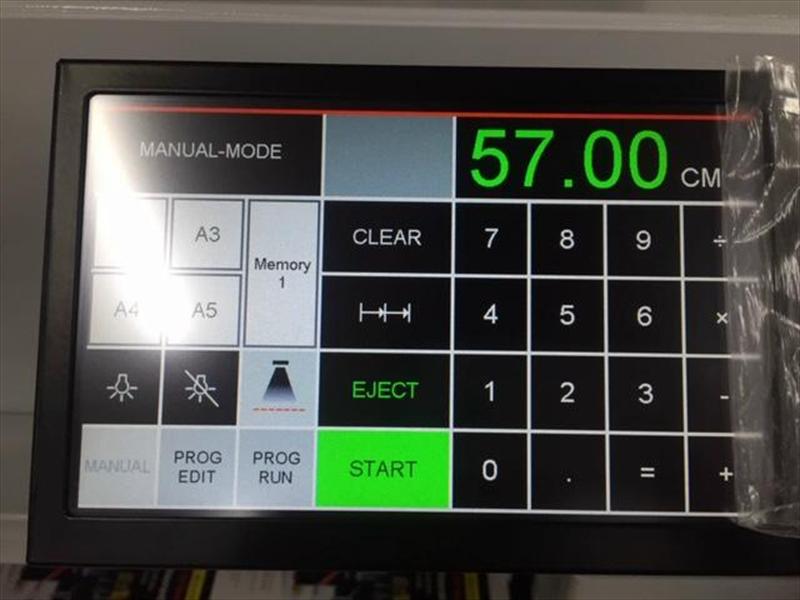

Hydraulic blade and clamp drive. Equipped with the new, patented EASY-CUT blade activating bars for convenient and safe cutting. Comprehensive SCS safety package: IR light beam safety curtain on the front table; safety cover on the rear table; lockable main switch; electronically controlled true two-hand operation; 24 volt controls (low voltage); safety drive; automatic blade and clamp return from every position; blade changing device with covered cutting edge; blade depth adjustment from the outside of the machine; easy blade and cutting stick change from the front of the machine without removing covers. Foot pedal for pre-clamping or as mechani-cal cutting line indicator. Optical cutting line with bright and durable LEDs. Electric backgauge drive with touch pad for easy setting, multilingual operator guidance and digital display. Measurement readout in cm or inches (display accurate to 1/10 mm or 1/100 inch). 99 programs with 99 steps in each program (up to 15 repeat cuts can be integrated into a program as one single program step). Program runs automatically. 10-button key pad for presetting of measurement. Integrated calculator. Pre-programmed measurements for standard paper sizes. Programmable keys for quick setting of frequently needed measurements. Memory key for repeat cuts. Automatic SET function for reference measurement via start button. Program-mable EJECT function - for pushing out the paper. Self-diagnostic system with error indication on display. Electronic hand wheel for manual backgauge positioning with infinitely variable speed control (from very slow to very fast). Three-step front table illumination (LEDs). Adjusting knob for infinitely variable clamp pressure (min. 200 / max. 1100 daN) and pressure gauge. False clamp plate for delicate work. Solid front table made of die-cast aluminium with stainless steel worktops. Blade made of high quality HSS steel. Hydraulic swing cut for high cutting precision. Die-cast aluminium blade carrier and adjustable blade guides. Aluminium clamp bar. Adjustable blade depth. Sturdy cast iron machine frame. Movable on castors. Complete with practical tool holder and stacking angle. Optional set of side tables (left and right) available at an extra cost.

Height: 1370 mm
Width: 1070 mm
Depth: 1400 mm
Weight: 369 kg

Data sheet

Size : :
State :
NEW

Excl. 0.00% Tax
Qty :

Choisissez une extension de garantie

Extension de garantie : 5 ans (129 €)
Extension de garantie : 3 ans (89 €)
Aucune extension de garantie
»En savoir +
Request a quote
Ajouter cet article à mes favoris

Attached documents

BROCHURE FR. BROCHURE ENGL.
