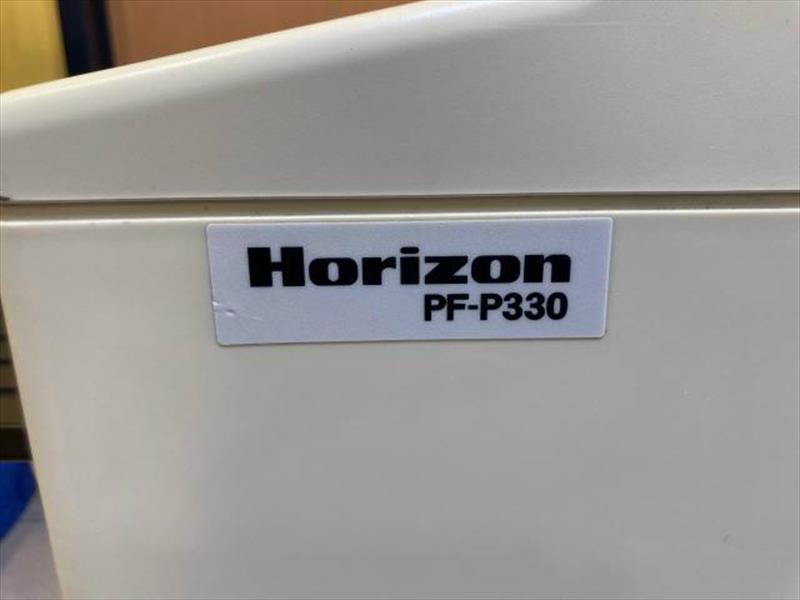

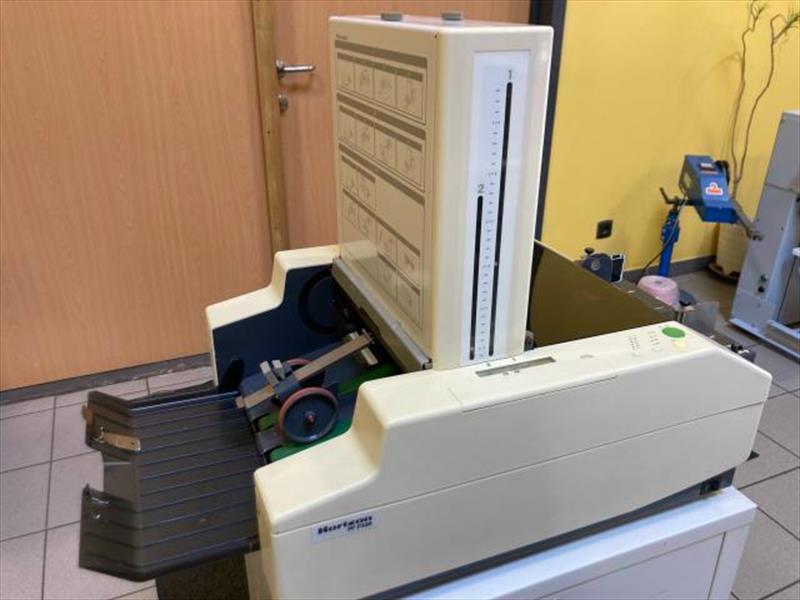

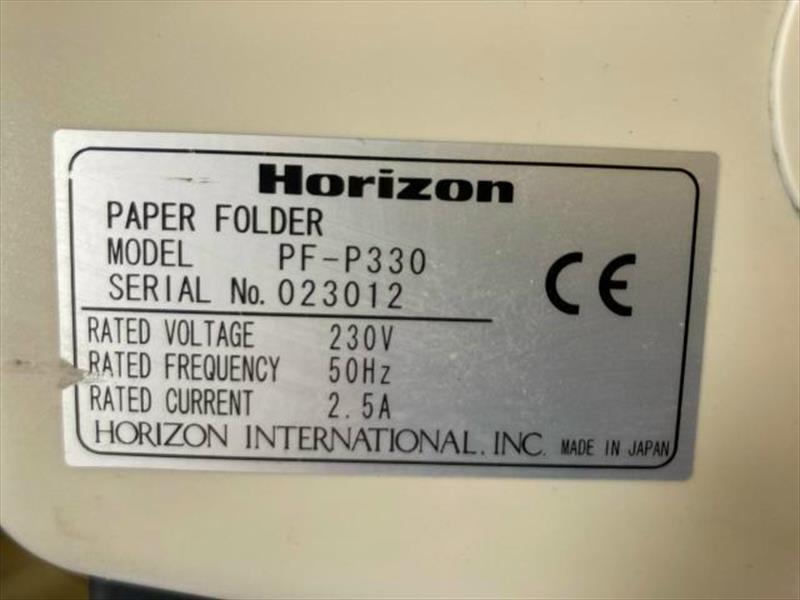

table-top paper folder HORIZON PF-P330 n°023012 with suction rotor feeding system, can fold 200 sheets (A4 single fold) per minute
The PF-P330 paper folder is accurate, easy to operate, and uses rotary suction feeding for perfect folding of color-printed sheets.
Automatic set-up with simple operation – Simply select the sheet size and fold pattern and each section sets-up automatically.
High-speed folding – The PF-P330 will fold 240 sheets per minute (A4 single fold with 60 Hz; 200 sheets per min. with 50 Hz).

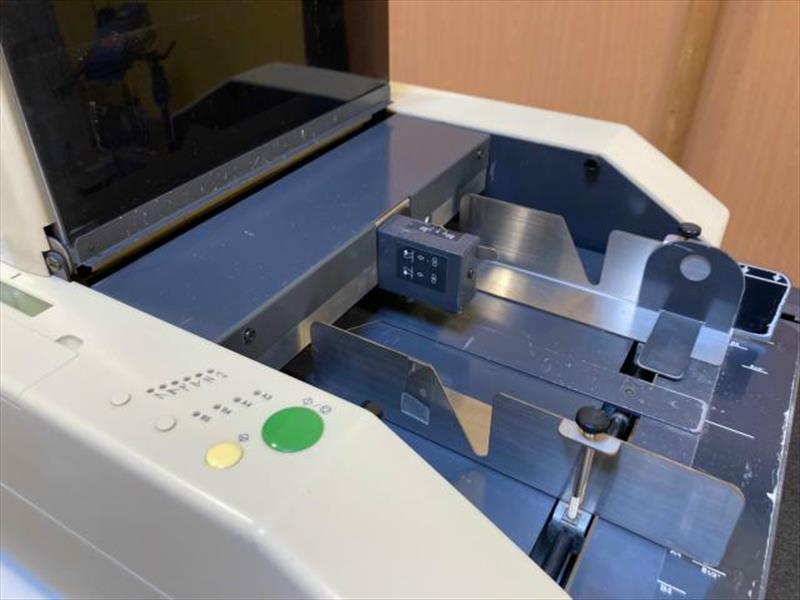

High capacity sheet pile table – 550 sheets of 64 gsm paper can be loaded on the table at a time, for efficient folding production.
Fold A3 / 11" x 17" and special size sheets – The PF-P330 can fold from B5 / 5.5" x 8.5" to A3 / 11"x17" size, and special-size sheets.

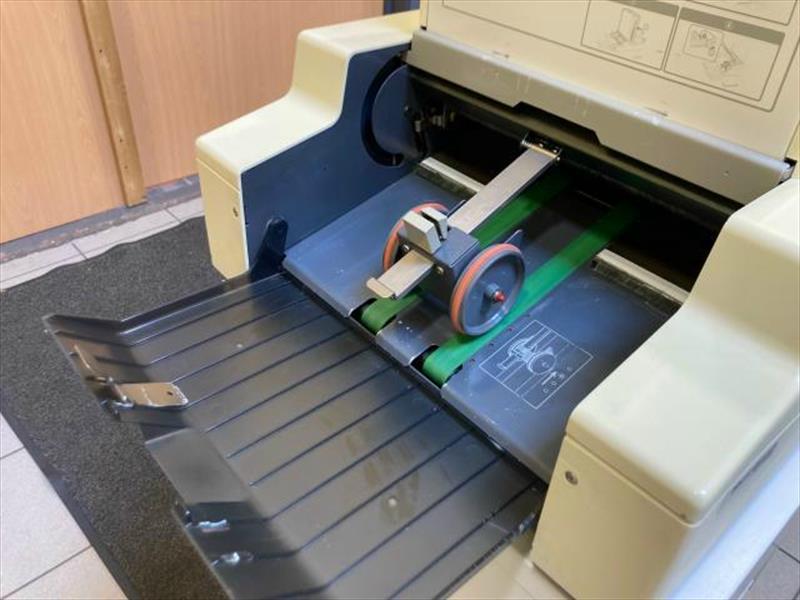

Helpful for Folding of drawings – Drawings can be placed face down on the feed table, and the folded drawings will be delivered in numerical order.

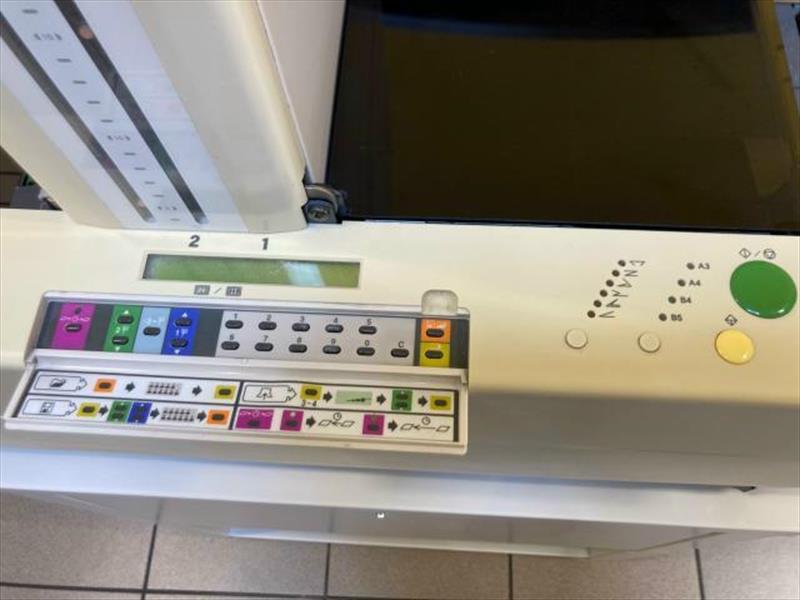

Extension Panel and Memory Functions – Additional special sheet sizes and fold patterns can be set-up through the extension panel, where up to 10 job settings can also be memorized
| Sheet Feeding System |
Air rotor system |
| Sheet Size (Width x Length) |
Max. 310 x 432 mmor 12.2” x 17”
Min. 125 x 130 mmor 4.93” x 5.12”
A3, B4, A4, B5, 11” x 17”, 8.5” x 11”, 8.5” x 14”, 5.5” x 8.5” |
| Sheet Weight Range |
Normal Paper, Glossy Paper, Coated Paper : 52 to 157 gsm
*Sheets which are heavier than 128 gsm cannot be parallel folded |
| Feeder Stack Height |
Max. 50 mmor 1.96” |
| Fold Patterns |
Single Fold, Double Parallel Fold, Short Fold, Accordion Fold, Letter Fold, Open Gate Fold |
| Production Speed |
50 Hz : 200 sheets per minute (A4 single fold)
60 Hz : 240 sheets per minute (A4 single fold) |
Machine dimensions :
When operated : W1,060 x D517 x H624 mm or W41.8” x D20.4” x H24.6”
When the delivery tray is stored : W730 x D517 x H624 mm or W28.8” x D20.4” x H24.6”

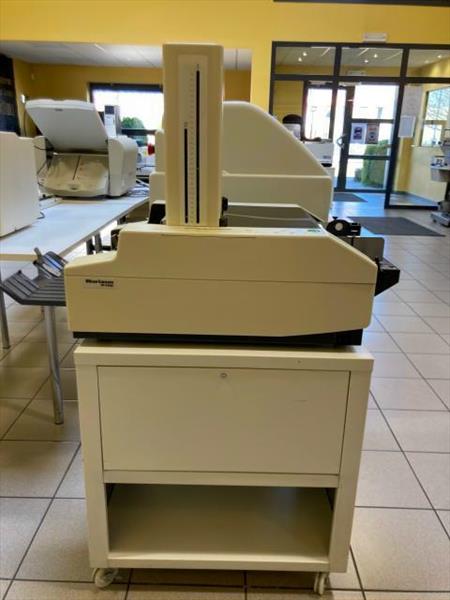

When operated (Including optional base) : W1,060 x D550 x H1,286 mm or W41.8” x D21.7” x H50.6”
When the delivery tray is stored (Including optional base) : Body : W730 x D550 x H1,286 mm or W28.8” x D21.7” x H50.6”
Machine Weight Body : 45 kg or 100.0 lb
Pump : 7 kg or 15.4 lb
