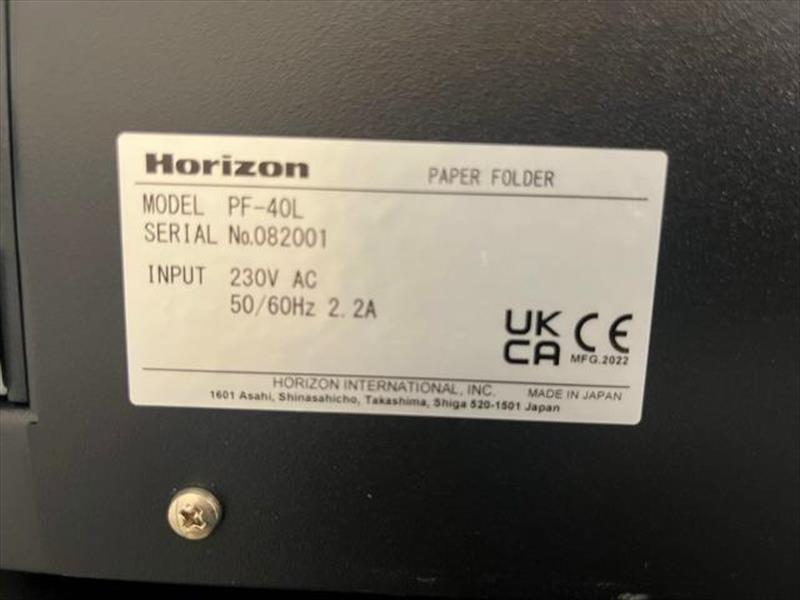

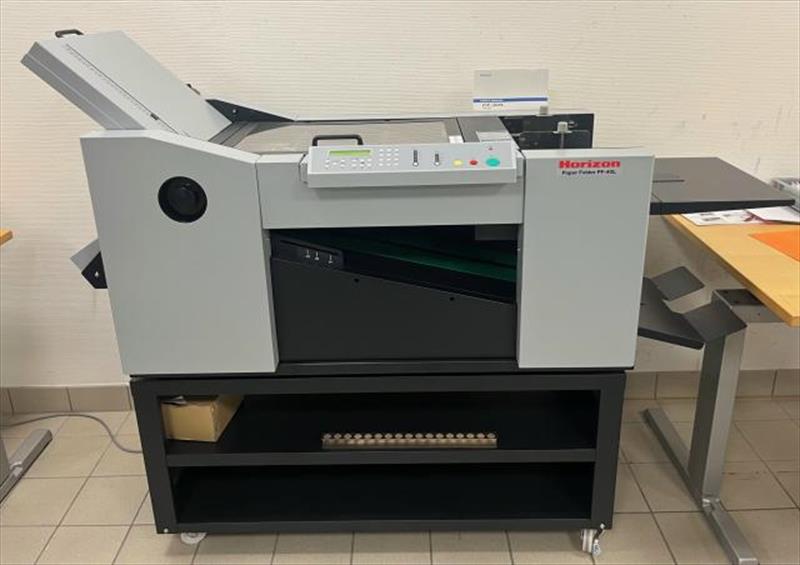

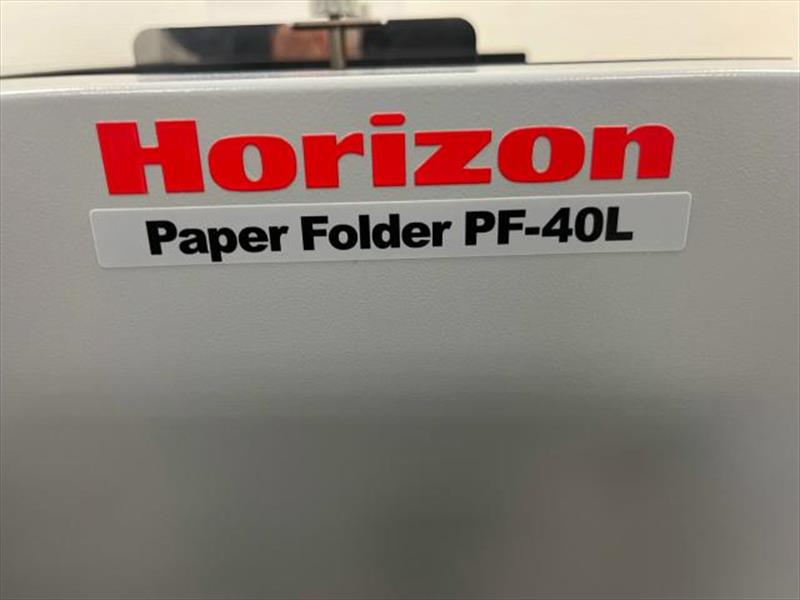

Professional office vacuum folding machine HORIZON PF-40L No. 082001 year 2022 for folding documents such as mailings, invoices, letters, etc. Compact, functional, and user-friendly machine The vacuum feeder handles all types of paper: offset, coated, digital
- Suitable for large formats, such as 630x320mm triptychs, produced in digital or offset printing houses
- Centering the sheets relative to the suction head ensures even wear, and therefore longevity, of the folding cylinders. - Suction of the top sheet of the stack and front blowing to separate the sheet from the rest of the stack using a pump identical to the one fitted to the manufacturer's professional assembly tower stations. The pump is characterized by its low noise level.
- Simple separator adjustment to prevent double-sheet picking. - Picks the top sheet of the stack. The weight of the stack does not affect proper paper picking. - Rectification table for optimal folding precision. - Extremely easy to use. The operator easily selects the format and fold type before starting work. - Automatic folding pocket adjustment. - No gap adjustment between the folding cylinders is necessary for papers from 53 to 200 gsm.

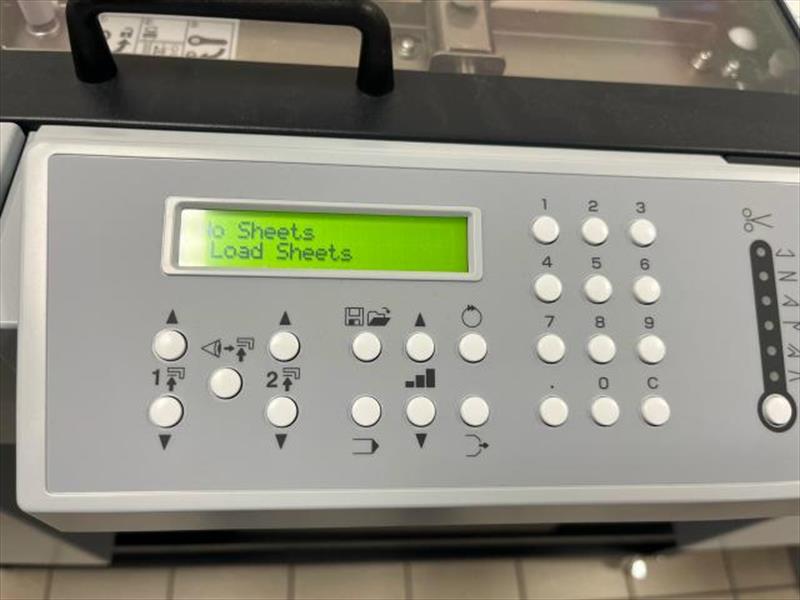

- Control panel with digital display for accessing various functions - 24 standard folds stored in memory: single fold, accordion fold, mail fold, and roll fold (6 fold types x 4 standard formats) - Other folds possible with manual adjustment - Memory for specific jobs - Convenient and practical: squareness adjustment, 4-digit up/down counter, automatic shutoff in case of paper shortage, jam, etc. - In the event of a pocket jam, it opens easily without having to remove it from the machine -
Complies with European CE safety standards

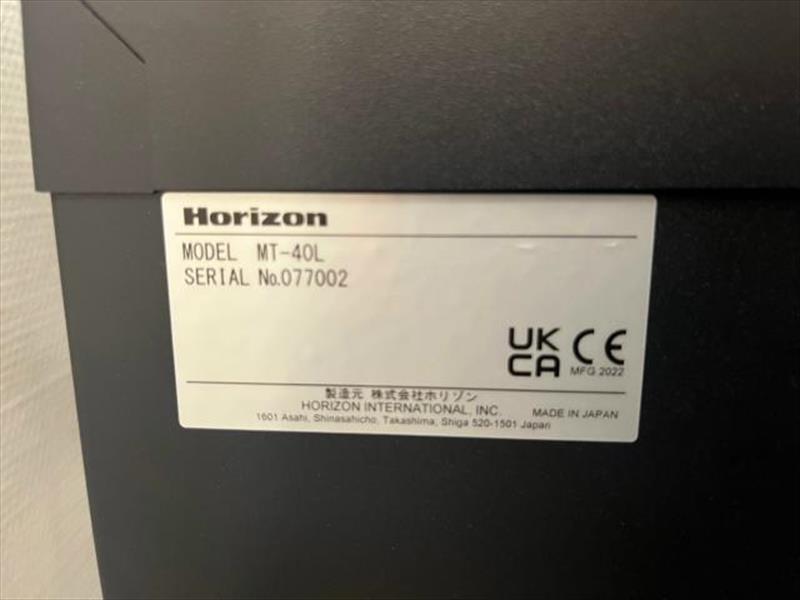

Supplied on its HORIZON MT-40L stand no. 077002.
TECHNICAL SPECIFICATIONS:
Max. format: 320x630mm
Min. format: 125x128mm
Weight: 53 to 200 gsm (single fold) and 53 to 157 gsm (double fold)
Stack height: 105mm
Production speed: 400 sheets/min.
Dimensions with stand: 1,560x1,300xH630mm
Voltage: 230V single-phase
