HORIZON » BQ-460/CF-460V 2006
» Ref : re999-70423

Zoom Images
Click to enlarge
Customer feedback :
See video

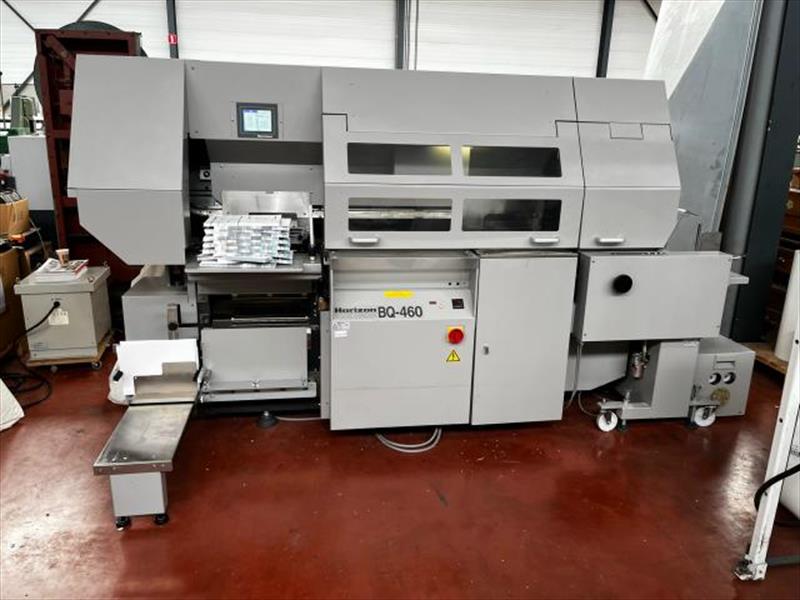

automatic perfect binding machine HORIZON year 2006 :

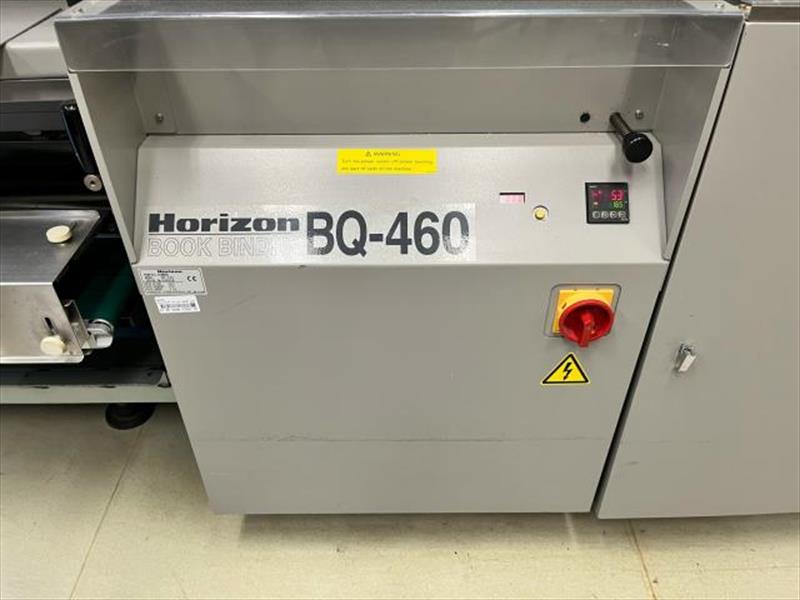

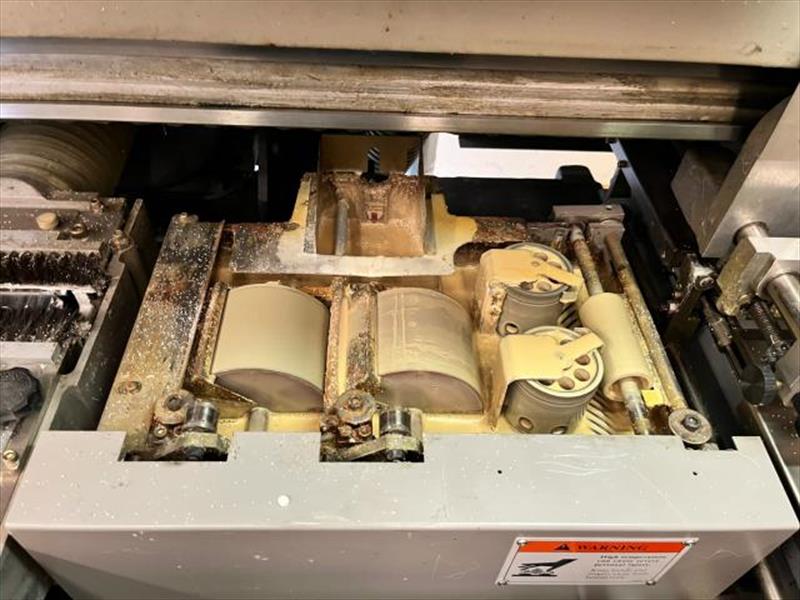

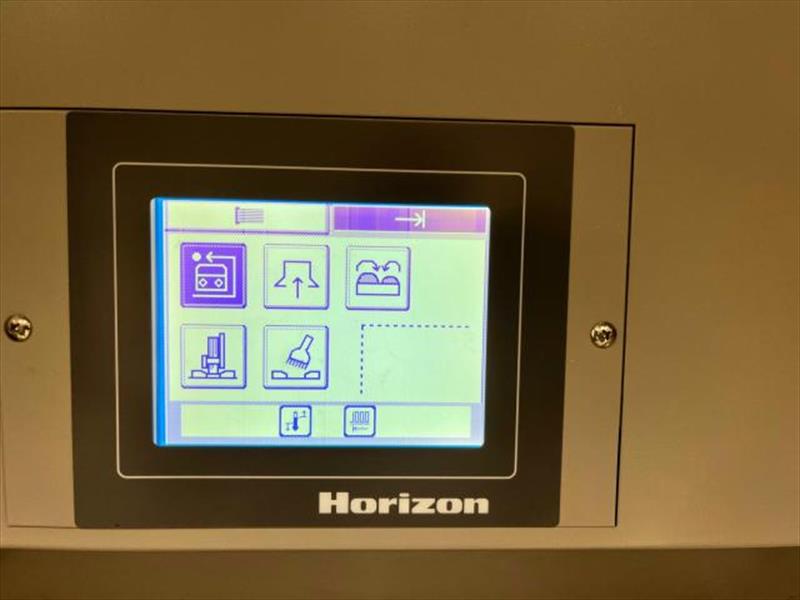

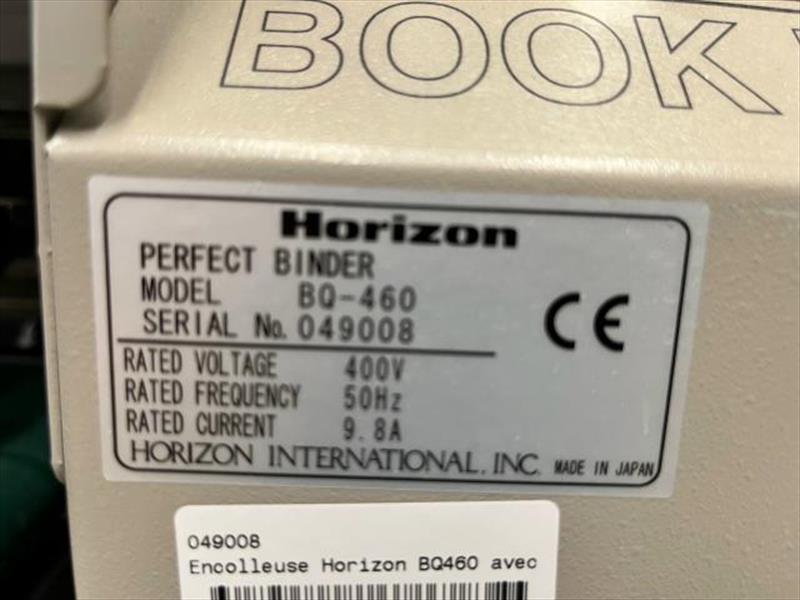

with perfect binder BQ-460 n°049008 producing consistently high quality perfect bound books at maximum production of 1350 books per hour, 4 clamps, all necessary setups performed through LCD touch-screen panel and easy-access setup mechanical controls, with carriage clamp, milling station, gluing station, side-gluing device, nipping station,

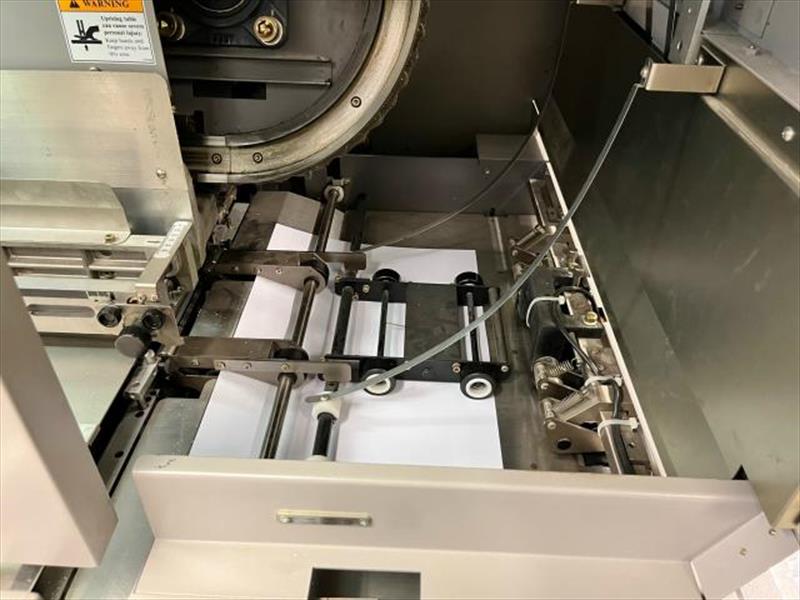

suction cover feeder detecting misfeeds or double-feeds, equipped with scoring unitvertical conveyor for delivered and stacked finished books, safe guards

max. book size :  320x320 mm,  min. book size : 110x145 mm, binding thickness : 1-55 mm
production speed : 1.350 cycles/h., max. cover size : 320x650 mm, min. cover size: 145x260 mm
cover weight range : normal paper 80 gsm or up - coated paper 104 to 300 gsm
dimensions : 299x162x158 cm, net weight : 1500 kg
-

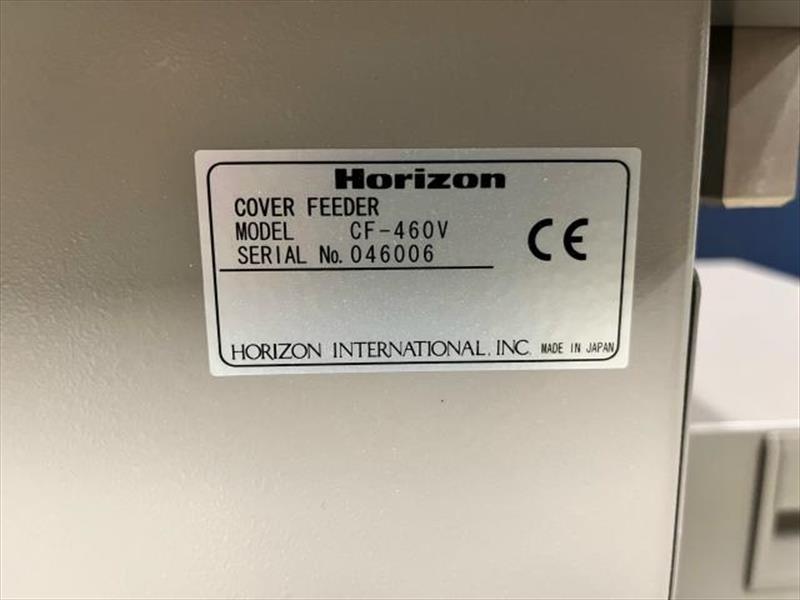

witth CF-460V suction cover feeder n°046006 for a wide variety of cover stocks, equipped with a scoring unit to provide a sharp spine and hinge score for a professional binding finish; stops the binding process immediately when it detects any misfeed or double-feed

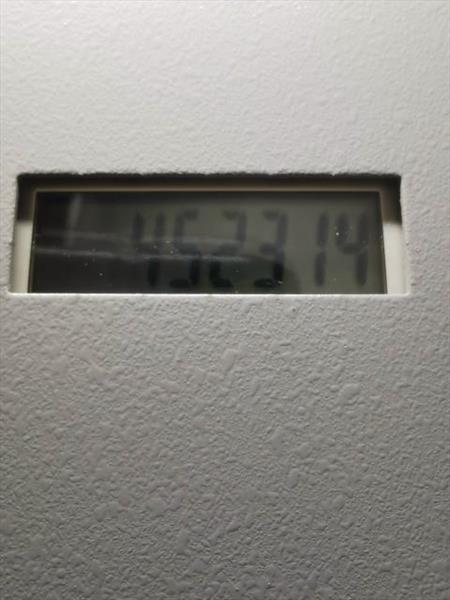

Counter : 452.000 sizing

 Comes from the printinghouse of Europe - Machine in excellent condition

Data sheet

Size : :
Serial Number :
Location :
availability :
Incoterms :
Country of origin :
Supplied with:
Accessory / options :
