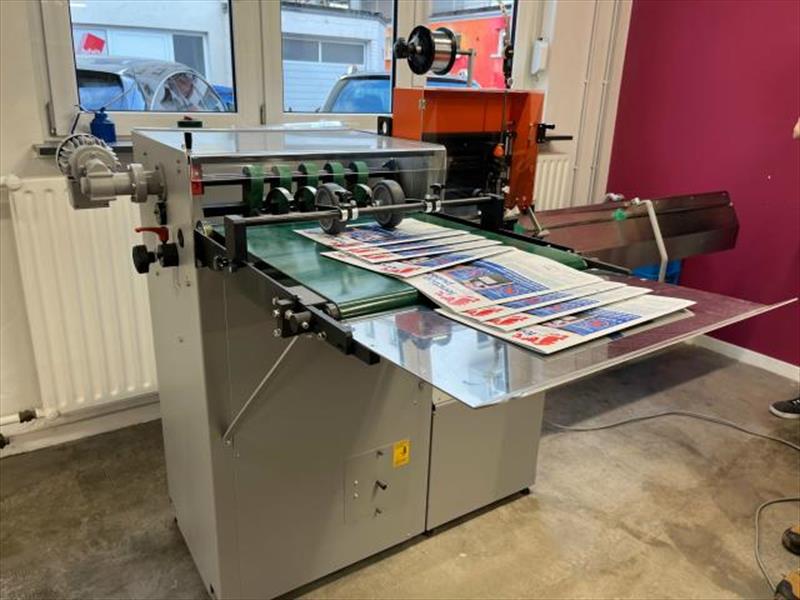

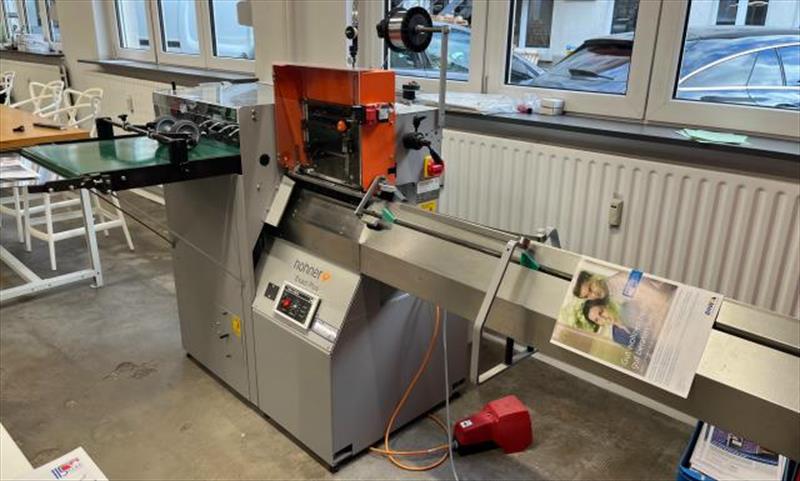

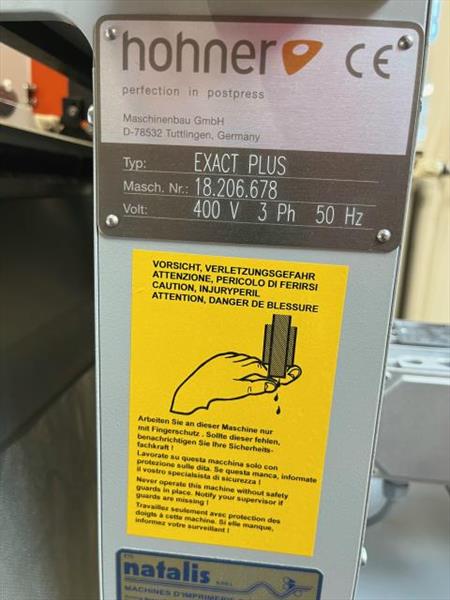

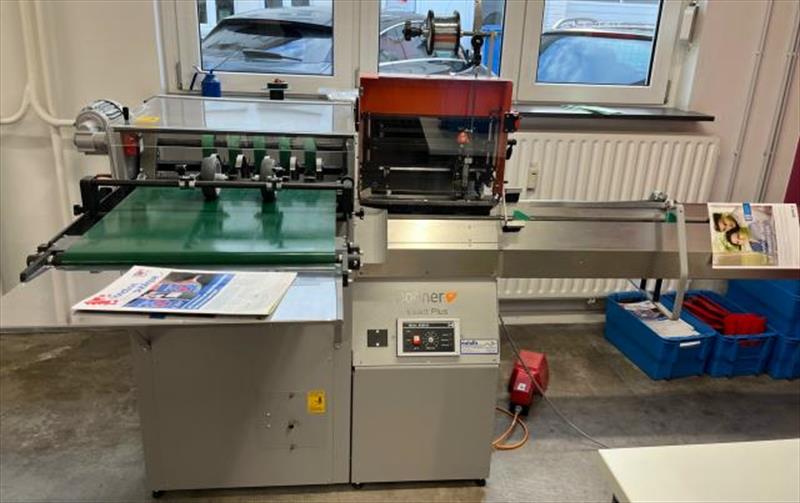

semiautomated brochure wire stitching machine HÖHNER EXACT PLUS of 1998 n°18.206.678 for mixed applications, equipped with 2 Höhner Universal 52/8 stitching heads for standard and loop stitching (optionnal) or mixed applications
allows gathering and stitching of unusal formats or stocks which present problems on ordinary gang stitchers
2 hand feed stations
speed up to 4000 products per hour
transport of signature is handled by two carriers to prevent damage to the product
one central adjustment for stitching thickness and wire lenght
conversion from normal to staggered stitch position and back again with seconds
brochures size (book spine x head/bottom) from 100x80 mm to 420x360 mm
max. stitching thickness : 6 mm for standard stitching
crown width : 14 mm
Distance between staple centers from 52-61 mm to 330 mm
Standard stitching with round wire n°24-28 (0,60 - 0,40 mm Ø) or n°26-30 (0,50-0,35 mm Ø)
max. speed : 50-70 strokes/min. by head
size of table : 237x156
weight : 300 kg
Machine available fropm 05/2025
