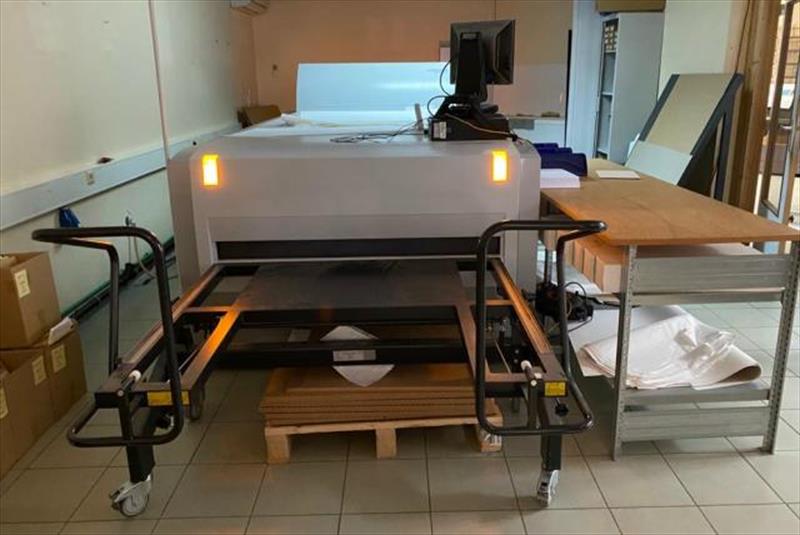

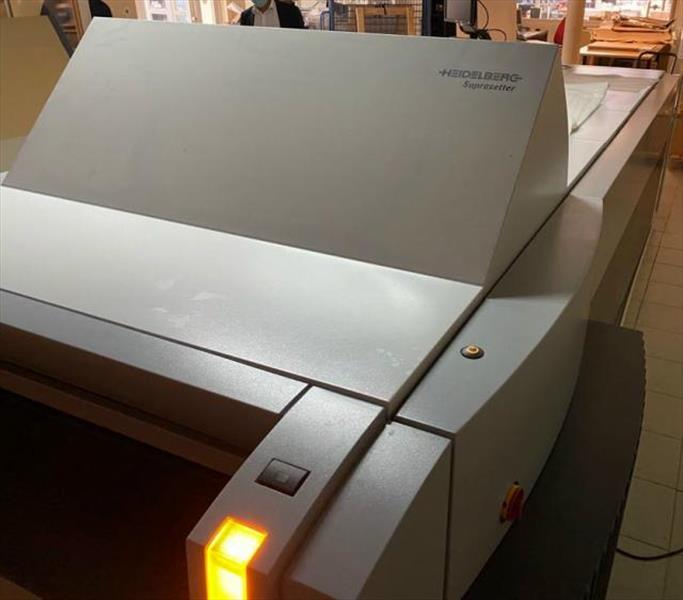

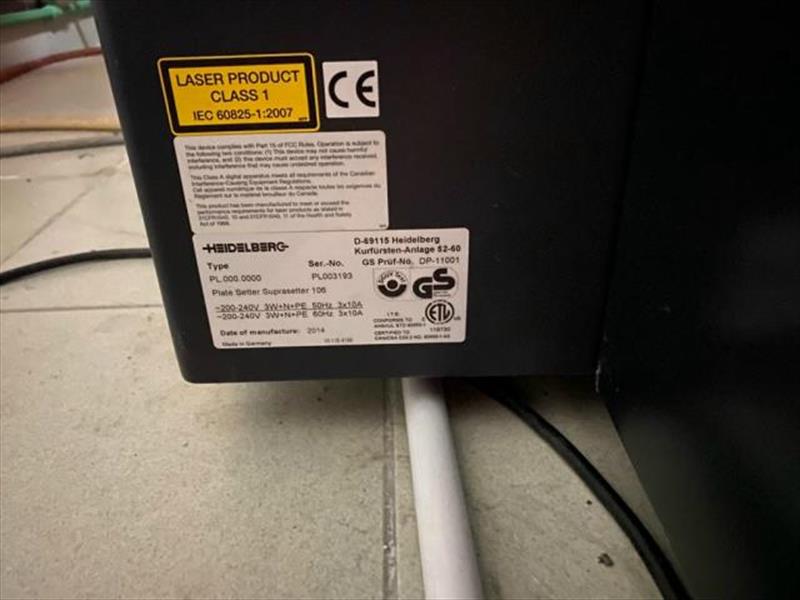

modular laser system CTP HEIDELBERG SupraSetter 106 of 2014 installed in 02/2015 with its patented Intelligent Diode Systems

productivity : 33 plates/heure

plate size : min. 370x323 mm - max. 93x106/114 cm

plate thickness : 0,15 - 0,35 mm

Resolution : 2.400 / 2.540 dpi

punch bar

internal punching system with pair of punches 425 mm + Bacher and pair of punches 780 mm + Bacher

debris removal system (vacuum and filtration system that removes loose particles and dust)

Prinect workflow

dimensions : 215x194,9x156,6 cm

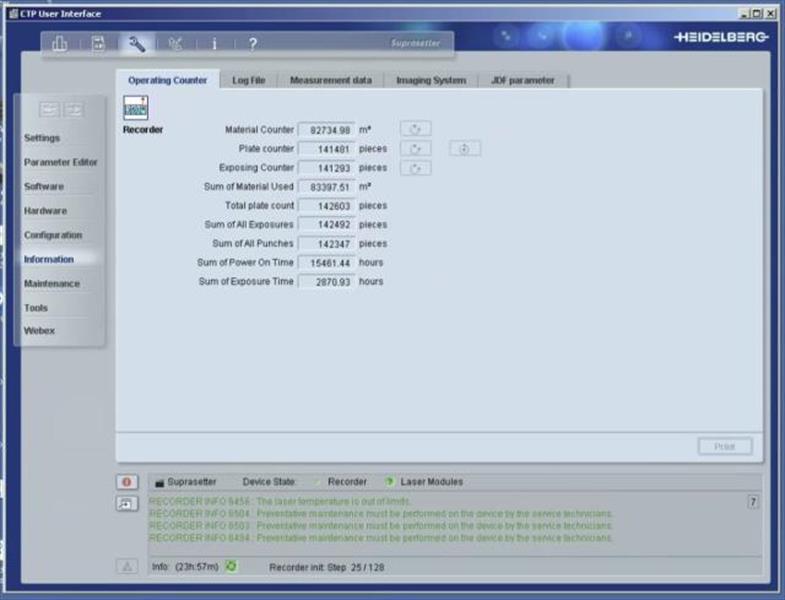

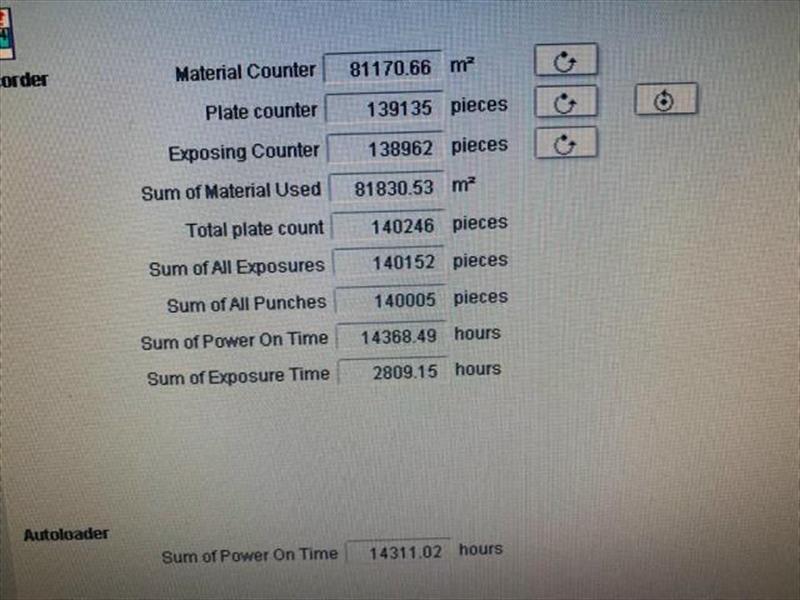

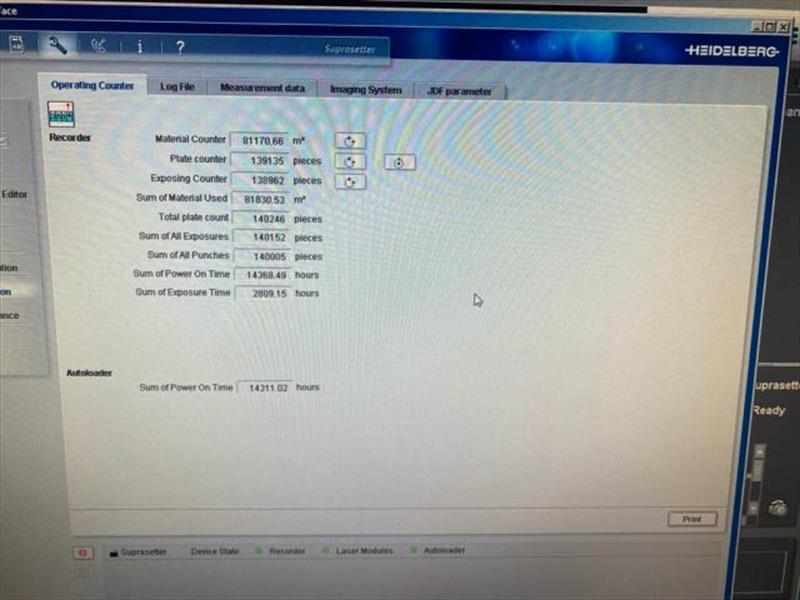

Total plate count : 140526 pieces

Autoloader : 14311,02 hours

+ cassette 106 MCL (3 formats en ligne)

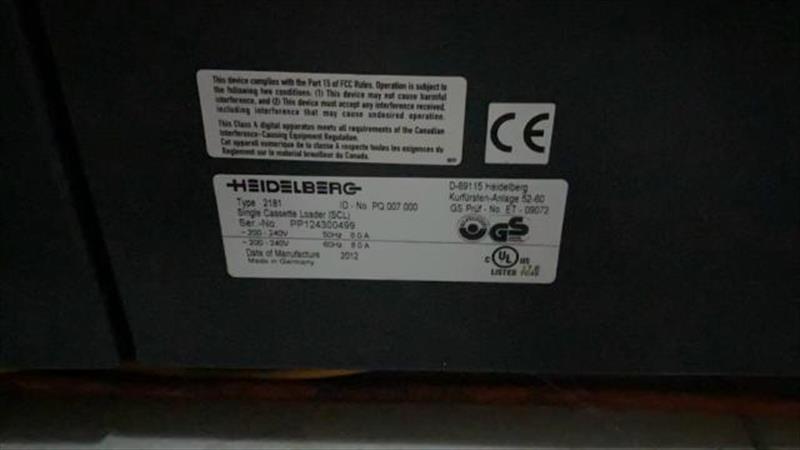

+ Single Cassette Loaded SCL 2181 of 2012

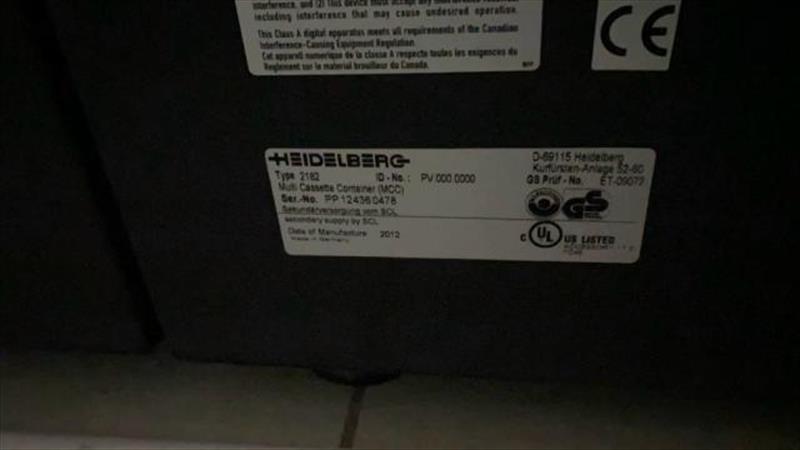

+ container multi-cassettes MCC 2182 of 2012

+ stacker GLUNZ & JENSEN 85/105 n°10014977, 1400 mm /55.2" with trolley

+ E5-2600 High-End Pheserver with Intel server chassis for Windows server 2020 (5 users) with module RAID storage controller,  Intel Xeon processor, Samsung DVD writer, Microsoft keyboard and mouse, hard disks

+ Windows storage back-up

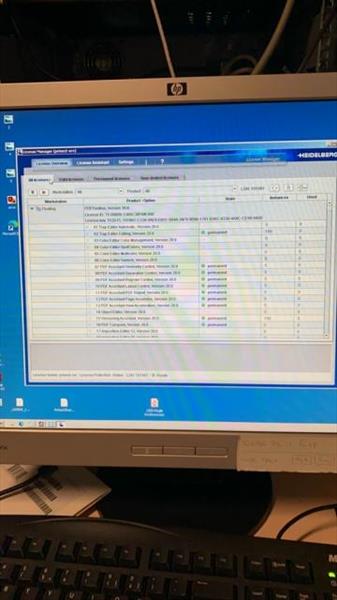

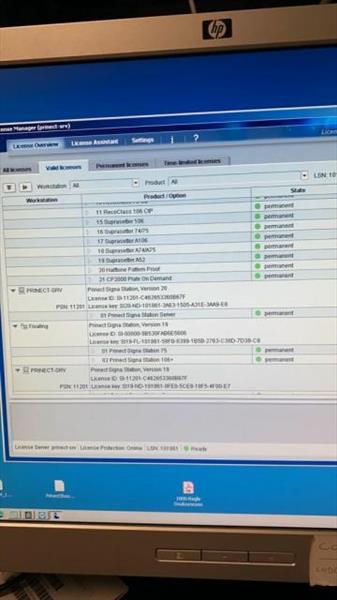

+ Upgrade 2 x SignaStations for sizez 75 to 106 included dongle licence transfert

+ Prinect Archive System included disk archive
