GLUNZ & JENSEN » OZASOL VA 66 E-P 2002
» Ref : lab800-00266

Zoom Images
Click to enlarge
Customer feedback :

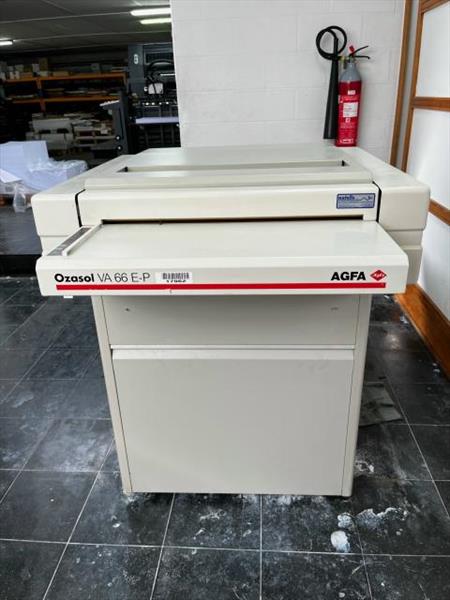

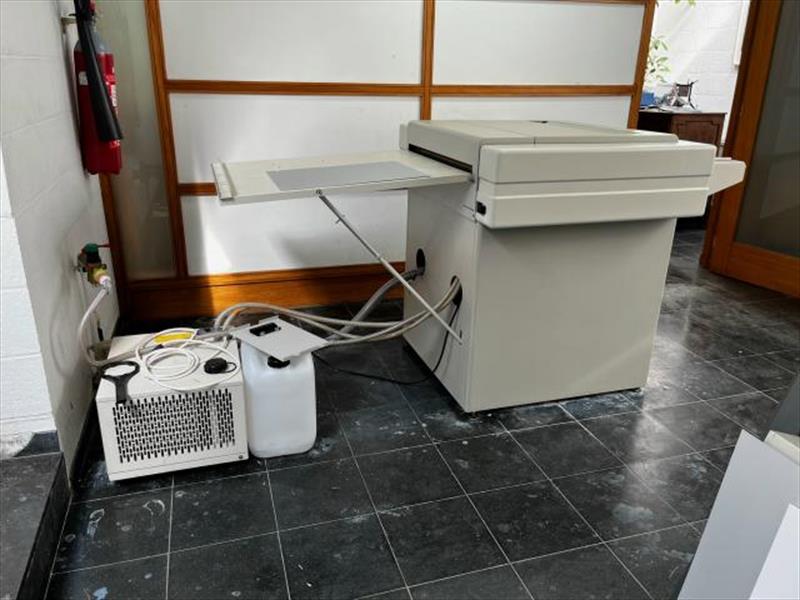

automatic plate processor AGFA OZASOL VA 66 E-P n°9448-0779 of 01/2002 manufactured by Glunz & Jensen, DK (= INTERPLATER IP66), 66 cm

for rapid processing of singlesided negative or positive offset plates

with four major sections : developer, wash, gum and dryer, with rewash slot, replenishment system, electronic control

plate width : 10-66 cm

plate lenght : 33-100 cm

plate thickness : 0,1 - 0,4 mm

plate speed : 40-140 cm/min

brush speed : 40-140 rpm

developer bath of 18 litres

dimensions : width 100 cm - depth 231-117 cm (incl. or excl. exit table) - hauteur 108-96 cm (incl. or excl. adj. legs)

2350 W - 50/60 Hz - 12 A. - 220 V single-phase




Data sheet

Size : :
Serial Number :
Location :
availability :
Country of origin :
Spécifications
Power required (KW) :
Dimensions (L x W x H in cm) :
Net weight (Kg) :
75
Age group :
Year of manufacture :
