Roll Laminator , double sided, GBC Catena 65  up to A1 sized documents for offices and print shops, laminating speed 500-1500 m/min..

Thermal and Pressure Sensitive Film laminator up to 25"

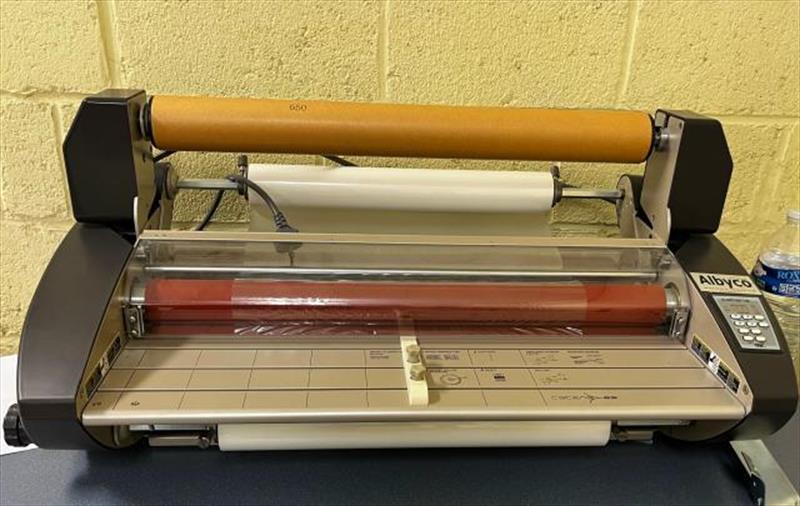

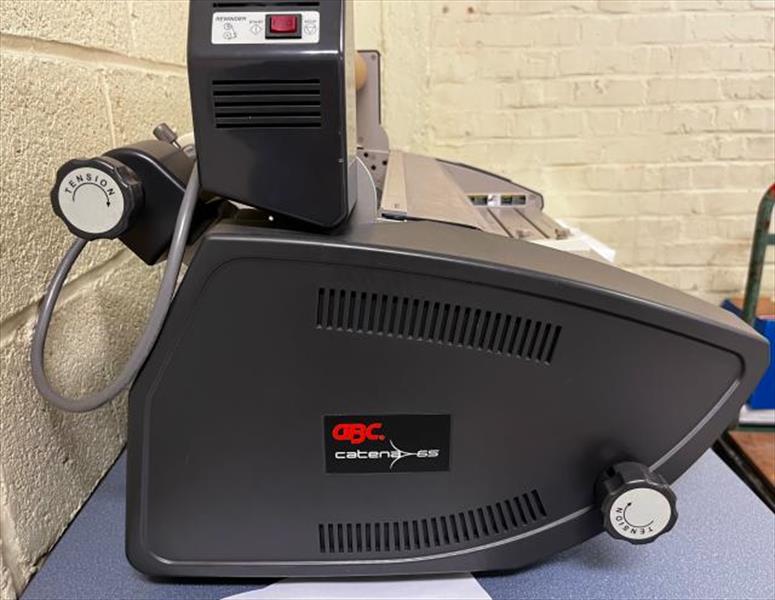

The GBC Catena 65 is a 25" tabletop laminator capable of lamination, encapsulation, and mounting of digital output using films up to 10mil thick. This thermal film laminator is designed for safe, convenient, moderate laminating production in any office or small print shop environment. The GBC Catena 65 Roll Laminator is ideal for laminating Signs, Posters, Placemats, Event Graphics, POP Displays, Show Graphics, Presentations, Banners, Store Signage, Menus, Courtroom Graphics and more.

Product Details

• LCD Display indicates temperature, speed and Ready/Wait condition

• Silicone rubber rollers ensure timely clean-up

• Interlocking feed tray and magnetic safety shield for safe operation

• Designed for thermal or pressure sensitive film up to 10 mil

• Roller gap adjustment handles mounting boards up to 3/16" (5 mm) thick

• Rewind roller peels away pressure sensitive release liner

• Infrared heating coil distributes heat evenly and improves lamination quality

• 8 bit microprocessor temperature control guarantees fast response time

• Cooling fan ensures smooth, flat output

• Exclusive preset temperature and speed settings for each film thickness

• Fine tuning override controls for both temperature and speed for variations in paper conditions

• Infrared heat detection provides instant reaction to heat changes on the silicone rollers

• Max. Roll OD 5"

• Finish Gloss and Matte

• Number of rollers : 4

• Maximum Doc Size: 25" – A1 max. Pouch/Film size (635 mm)

  Maximum Pouch/Film thickness : 250 micron per side (500 micron total)

• Speed: 1.5' - 5' per minute (45.7cm-152cm)

• Compatible Film: 1.5 - 10mil

• Core Diameter: 1" or 2.25"

• Maximum feed width : 650 mm

• Dimensions: 39"W x 18"D x 17"H – 990 x 460 x 430 mm mm

• Weight: 38 kg

• Warmup Time: 8-10 minutes

• Adjustable Speed: Yes

• Safety Approval: UL, CE, CSA Listed, TUV Certified

• Power Requirements: 120V, 60Hz, 12 amps
