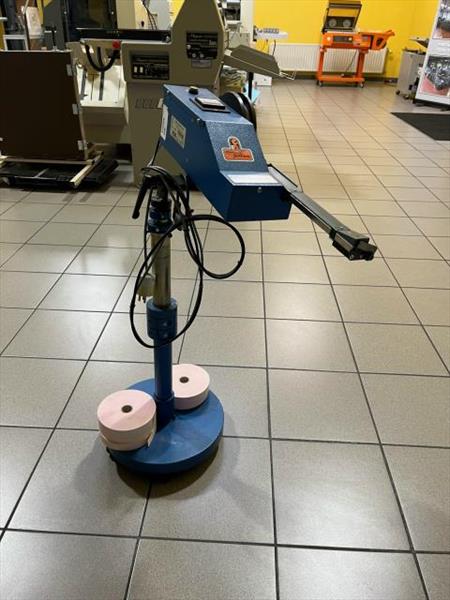

tab inserting device FOELLMER DUPLIKATOR OK/90 of 2003 typ D-102-1 n°1950
for high or low altitude delivery of press (the present device is suitable for SM 52)
counts, devides, inserts tabs
pulse transmission from machine counter by micro switch or by optical coupler
time cycle : 0,9 sec. at 100 mm tab lenght
tab lenght : 100 mm
tab retaining time : infinitely adjustable from 0-30 sec.

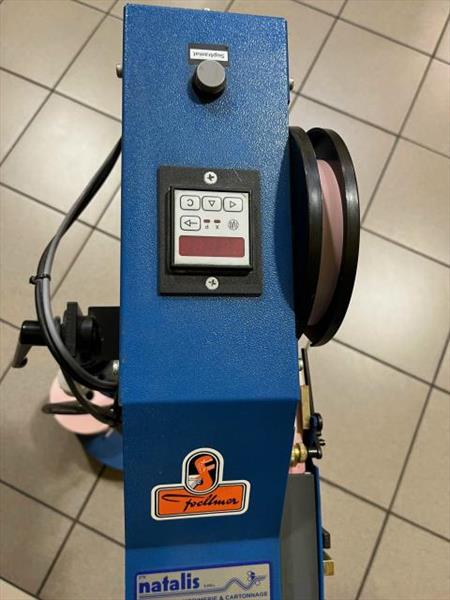

equipped with electronical preselection counter for tab insertion
complete without stand
dimensions : 390x125x100 mm
space requirement : 50x50 cm
net weight : 8,9 kg

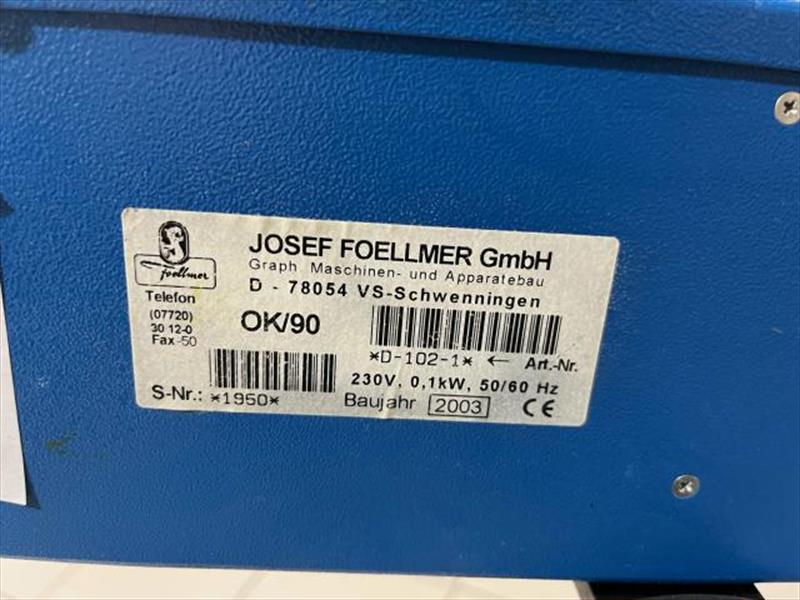

230V - 0,1 kW - 50/60 Hz
