DUPLO » DFC-10
» Ref : re800-90100

Zoom Images
Click to enlarge
Customer feedback :

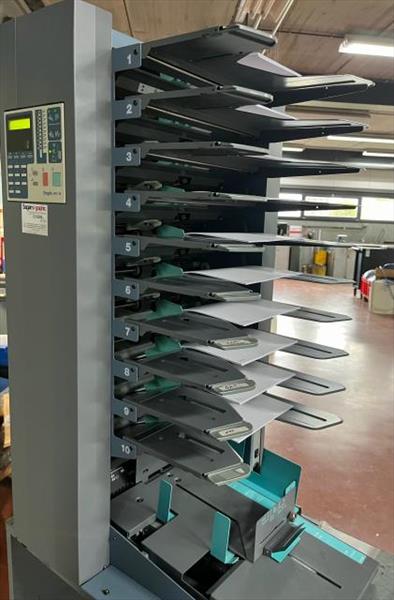

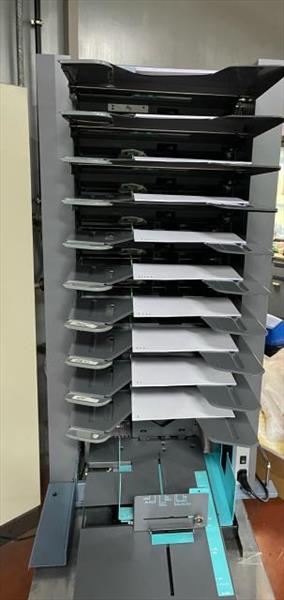

Friction collato DUPLO DFC-10  n°050500613 year 2005, 10 stations,

DFC Series collators use three prependicular rubber feed wheels to feed sheets into the machine.

This ensures collators can grip the entire leading edge of the sheet to guarantee feeding of all sheet sizes from A5 to A3.

Assembly stations - 10

feed systems - 3 friction feed wheels

Capacity per station - 28 mm (260 mm sheets at 80 g/m²)

Min sheet size - 140 x 140 mm

Max sheet size - 320 x 450 mm

Paper weight - 50-130 g/m²

Speed ​​(games/hour) - 3900 games/hour

220 volts-mono
