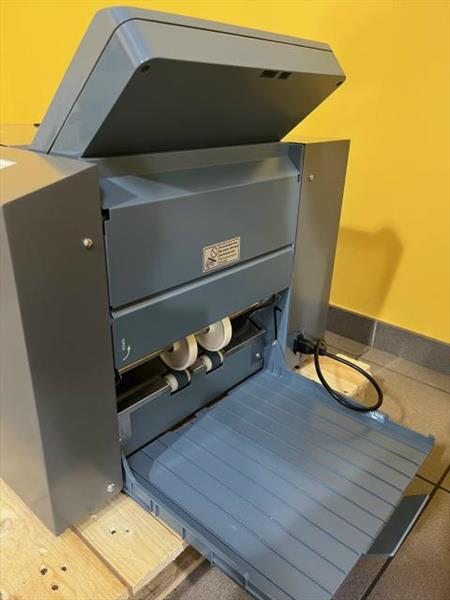

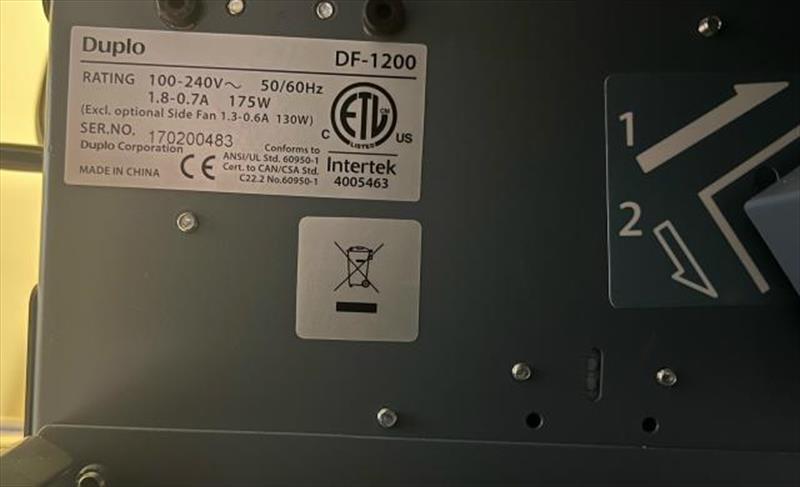

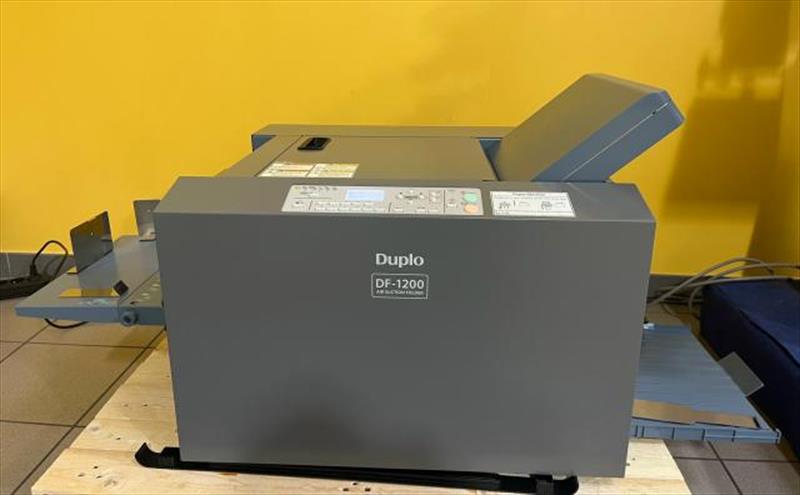

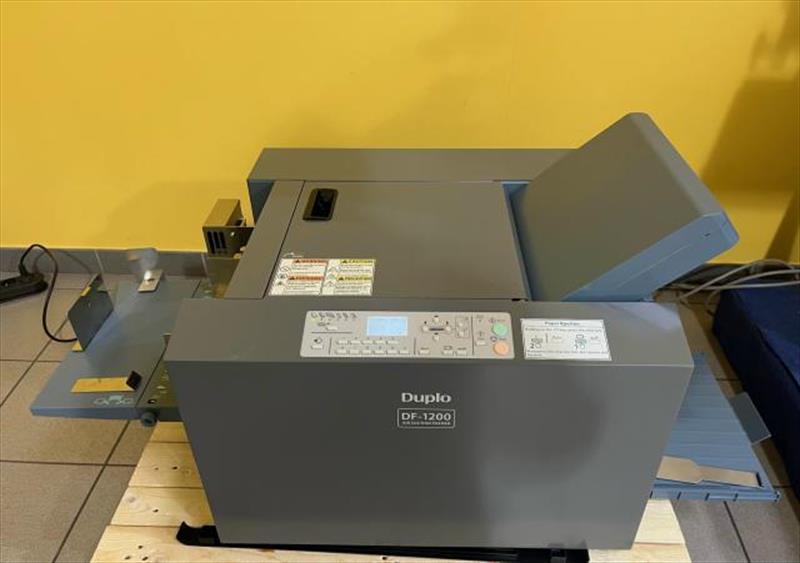

Automatic Suction Folder DUPLO DF-1200, n°170200483 year 2017
max. format: 311x457mm, table model

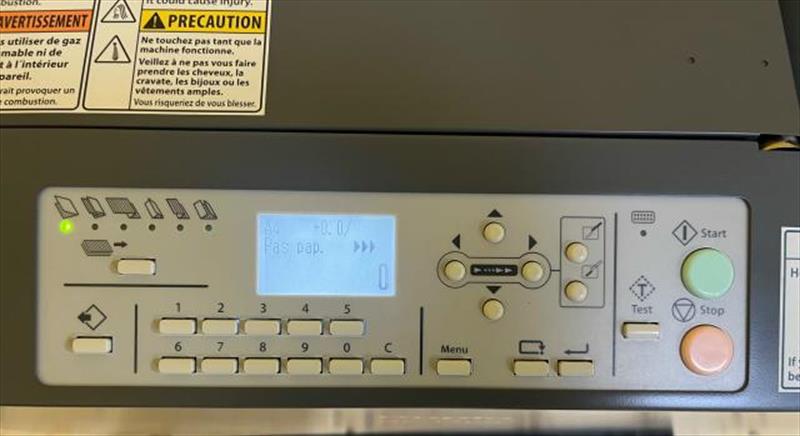

20 storable programs Special coated paper
Double and missing detection Jam detection
Max. paper format. SRA3
2-pass cross fold
Adjustable blower and optional side blower
Technical details

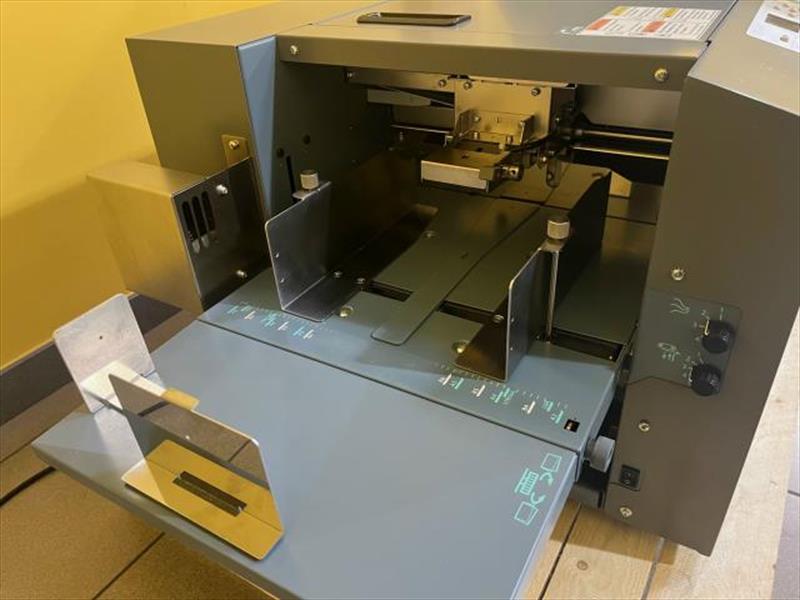

Feed mechanism Suction (fan motor)
Minimum paper size 120 x 182 mm
Maximum paper size 311 X 457.2 mm
Paper quality Offset, coated, recycled paper, etc.
Accepted weights From 52.3 to 250 g/m² (note: it is preferable to crease heavy-weight papers)
Folding method Single fold, wallet fold, accordion fold (+ offset), rolled fold,
envelope fold, cross fold (2 passes) and personalized fold
Processing speed 260 sheets/minute (A4) Or 15,600 sheets/hour
Memory of jobs 20 Paper feed tray 50 mm
Optical double feed detection
Machine dimensions: 1193x587xH541mm
