DUPLO » DC-10000S
» Ref : re800-35059

Zoom Images
Click to enlarge
Customer feedback :

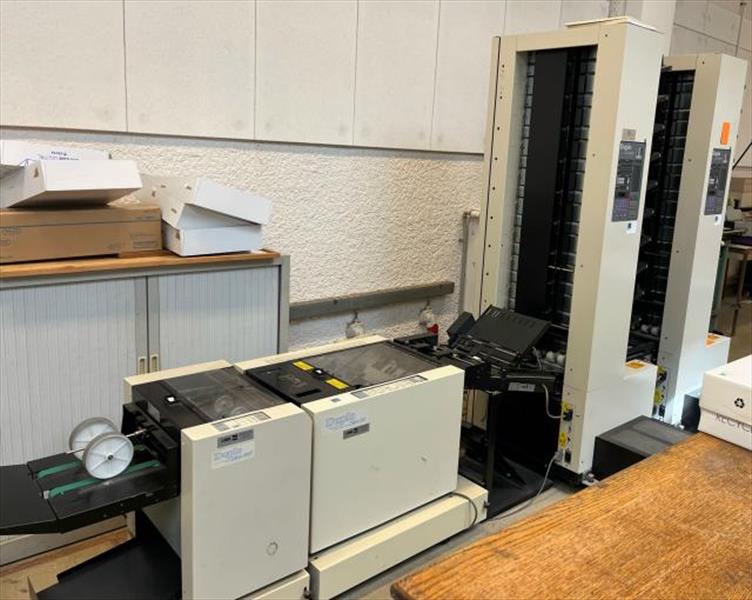

Bookletmaker/collating Line  DUPLO with 20 stations including:  -

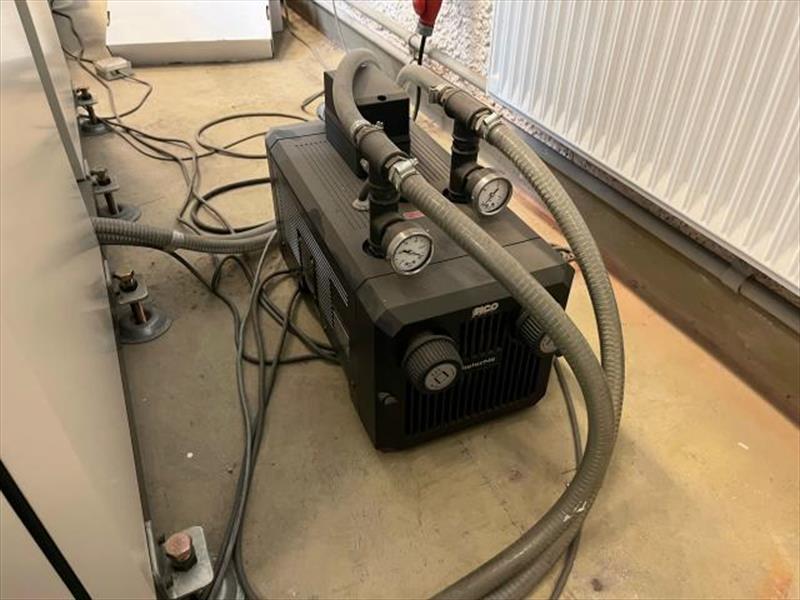

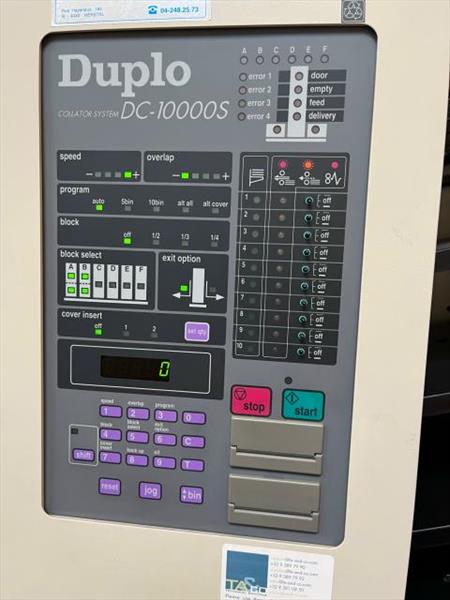

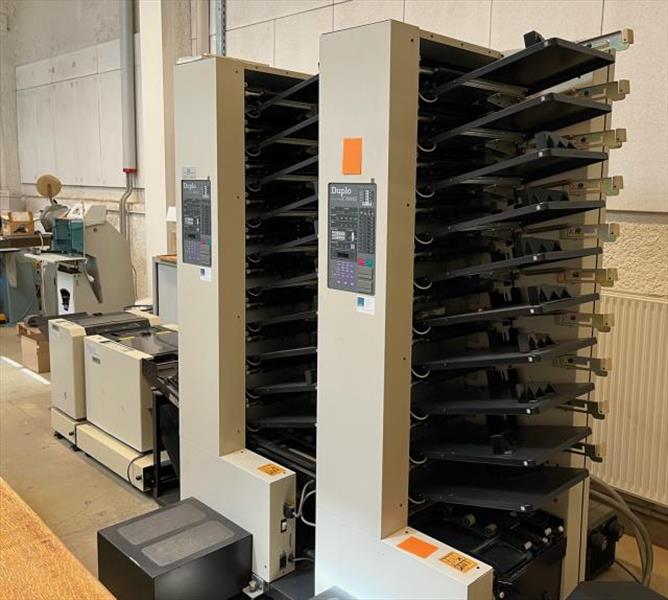

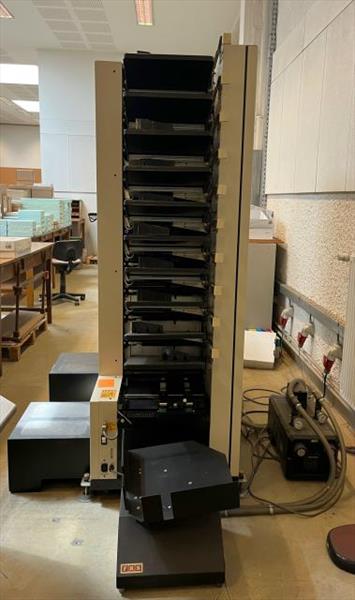

2x  DUPLO DC-10000S vertical suction lathe from 1998 n°980600378, with double air and brush system for sheet separation, paper transport by double belt conveyor  20 posts - capacity: 55 mm per post  paper size: min. 120x200mm - max. : 350x500mm  paper weight: 40-300 g/m2 for the 2 upper and lower stations                                  40-250 gsm for other items  variable speed up to 5000 sets per hour - booklet production up to 2370 per hour  control panel with extensive programming options, 5-digit counter, pre-programmable counting, total counting  automatic double, missing, empty station and jam detection  programming of 5 digital pre-selection with automatic insert insertion  dimensions: 63x70x205 cm - net weight: 375 kg - with compressor

+ DUPLO Lift Unit LU-HM

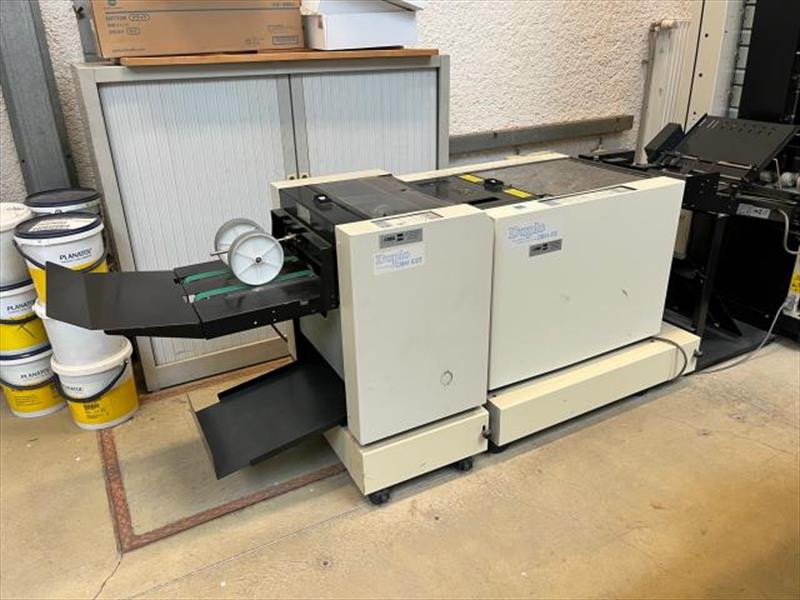

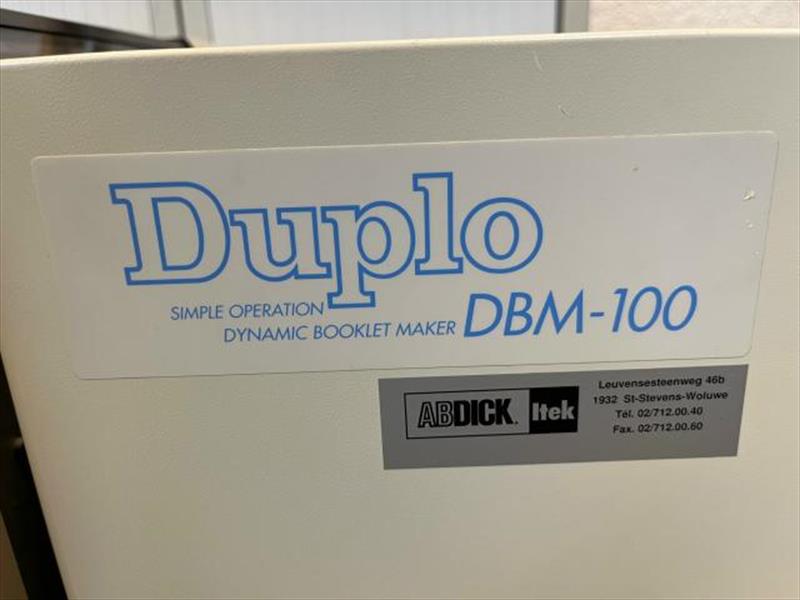

+ DBM-100 finisher For automatic stapling and folding (saddle, corner or side stapling) with document format auto-adjustment mechanism, control box with 8 possible programs (3 pre-programmed and 5 other applications that can be added in memory ), magazine with a capacity of 5000 staples (the interface stops the machine once the reserve is exhausted)  Paper format :  Corner or side stapling: from 139x210 mm to 231x320 mm  Saddle stitching and folding: from 200x200 mm to 450x320 mm  brochure format from 200x100 mm to 320x225 mm  2 stapling heads  paper capacity (80 gsm): folded sheets: 25 / flat sheets: 30  detection of jams, misses, empty staples  dimensions: 55x114x68cm  net weight: 80 kg - 230V - 50Hz

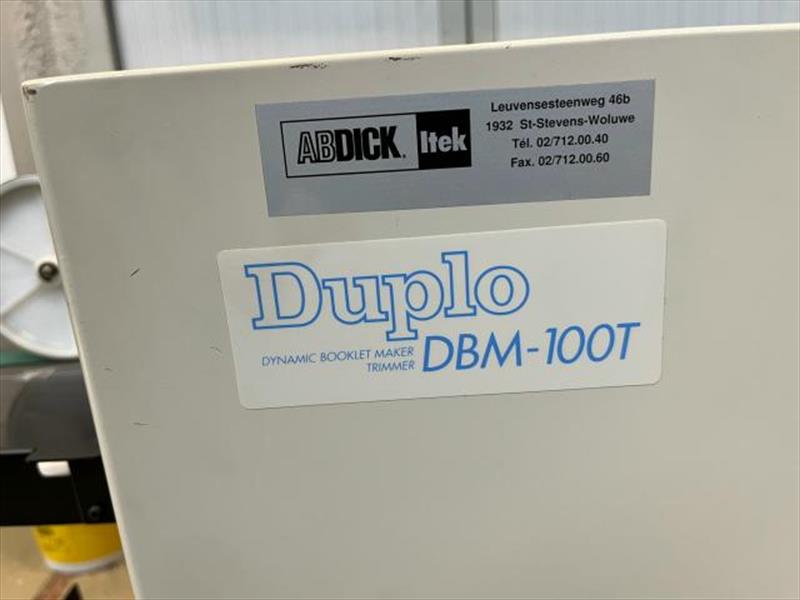

- DBM-100 T cutter module (hunting cutter, 80 kg)

+ Jogger
