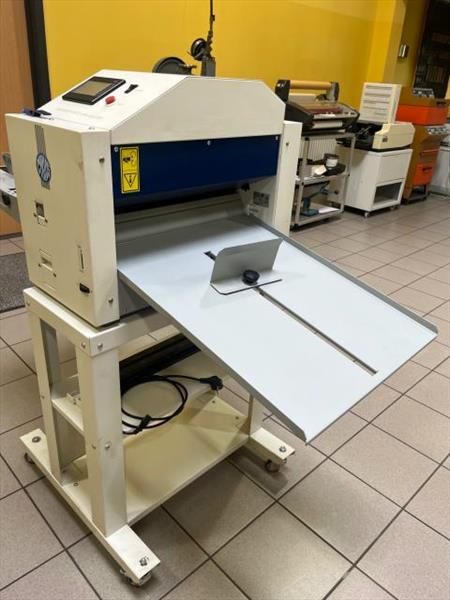

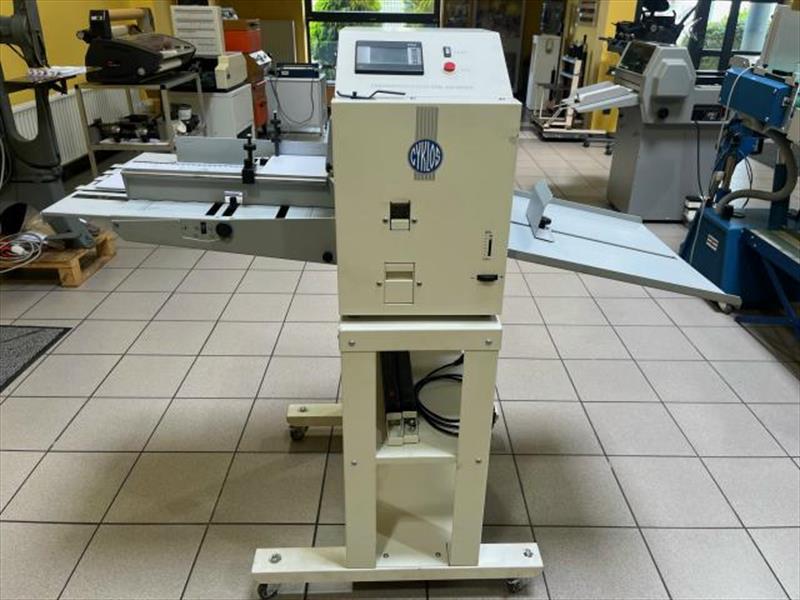

Automatic friction creasing-perforating-punching machine CYKLOS GPM 450 SPEED No. 13051902 year 2013
Friction creasing machine operating at a width of 450 mm with a throughput of up to 2,500 sheets/hour
Sheets are drawn from the paper hopper, which can be continuously fed.

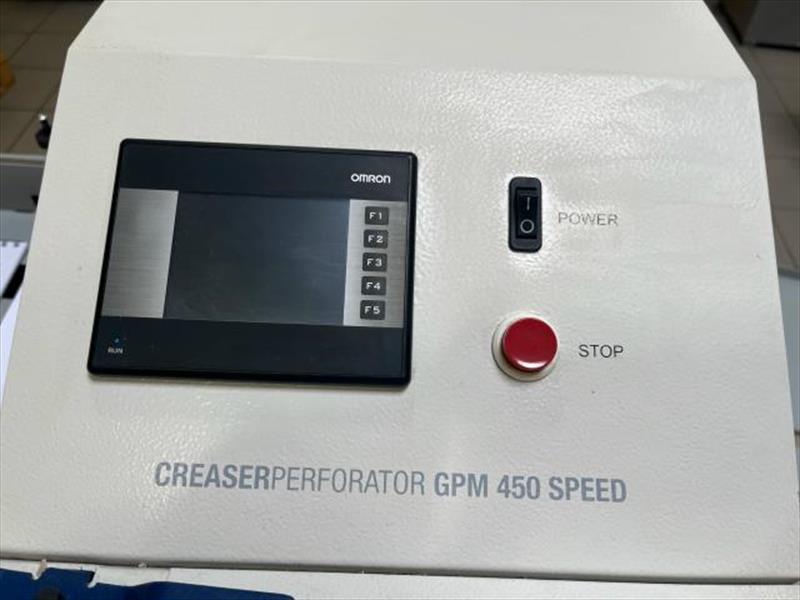

Operating parameters are entered via the touchscreen.
- High-quality "anvil" perforation

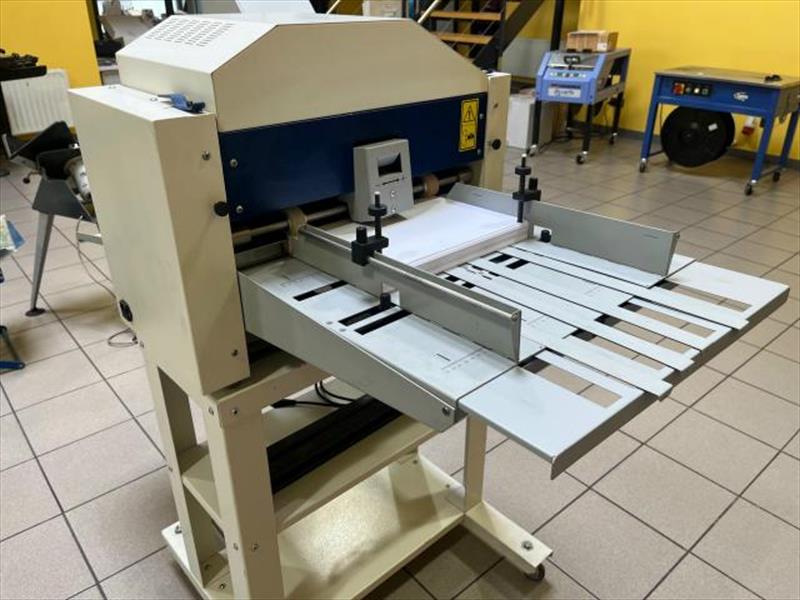

- Telescopic feed table

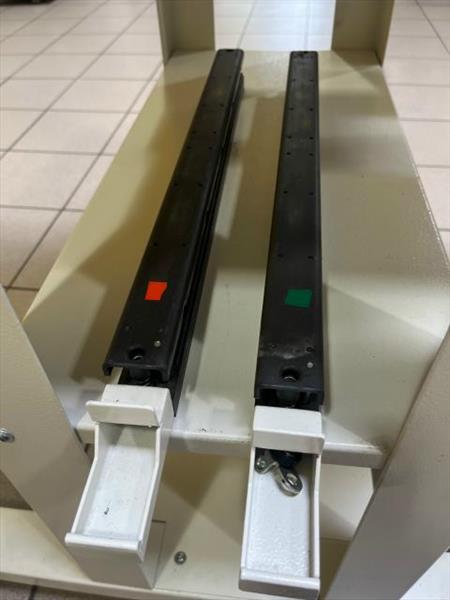

- Easily interchangeable tools
- Two creasing widths
- Touchscreen
- Table suitable for A2 format
- 1.0 mm CITO creasing tool included
- 1.9 mm creasing tool (iron groove) included - 2:1 perforating tool, 9 TPI included
Technical parameters:
a) Max. working width : 450mm
b) Recommended paper weight - creasing: 100-400gsm
Recommended paper weight - perforation: 80-250gsm
Recommended paper weight - punching: 80-250gsm
Maximum number of creases per page: 15
Number of programs: 5
Min. distance between creases: 2mm
Speed: 3500 A4 pages/h (with a scratch)
Dimensions: 750x670xH520mm Net weight: 120kg Gross weight: 157kg
Voltage/frequency: 230V/50-60Hz
Power, current :400W, 1,0A
