BACHER » 2042
» Ref : lab600-00499

Zoom Images
Click to enlarge
Customer feedback :

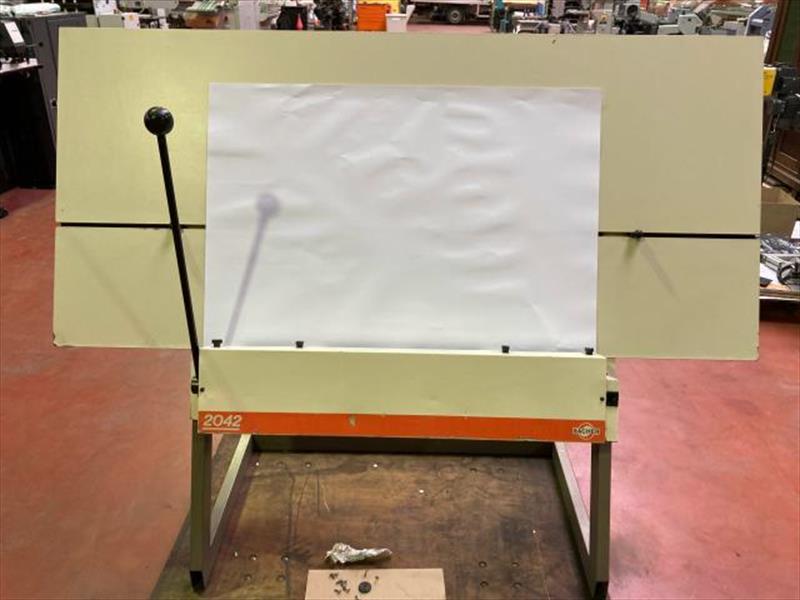

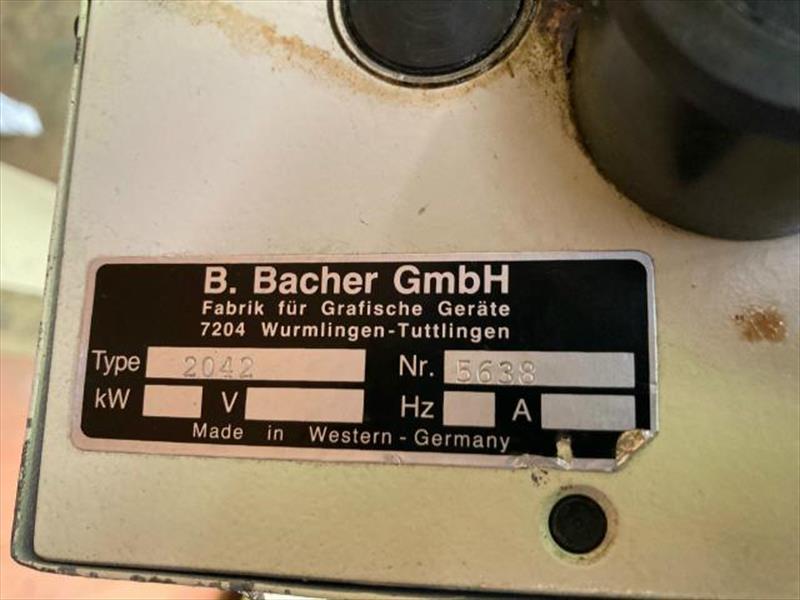

plate puncher BACHER typ 2042 n°5638, stand model, modified for PM/SM 74 and SM 102

CONTROL 2000 register punch, with Heidelberg register scope, is used to punch foils or flats, printing plates, etc...  with slant feed table and collapsible support stand

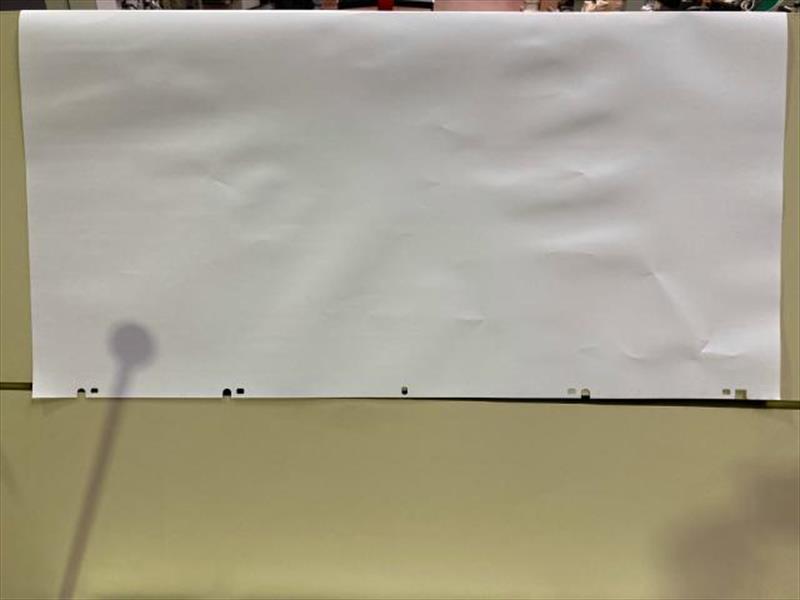

Five-hole punch : punching measure 780 mm, positioning hole at center, two U-form cut-outs, LH and RH, to line up plate on press, as well as two slotted holes, LH and RH, for stripping

Next to the U-form cut-out, LH or RH, is punched the hole for register scope

The material to be punched is lined up by centering it,
no special setting-up for various plate sizes

suitable for Speedmaster 74 & 102

net weight : 85 kg
outside measurements : 158x52x121 cm


Data sheet

Size : :
Serial Number :
Location :
Incoterms :
Country of origin :
Spécifications
Dimensions (L x W x H in cm) :
Net weight (Kg) :
85
