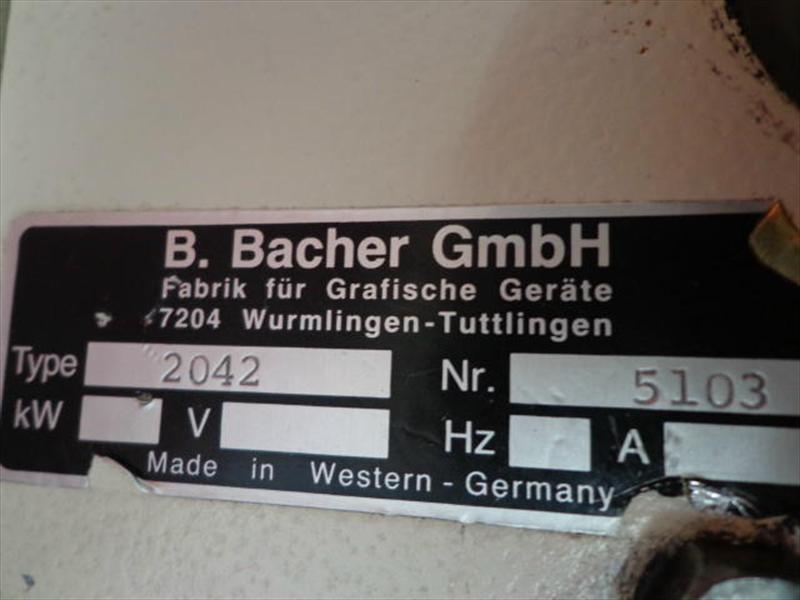

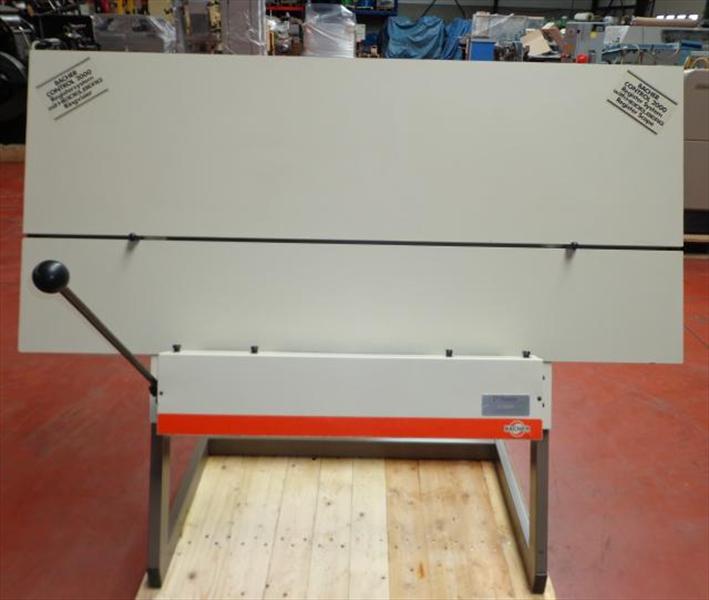

plate puncher typ 2042 n°5103 of 1984, stand model with orange colour

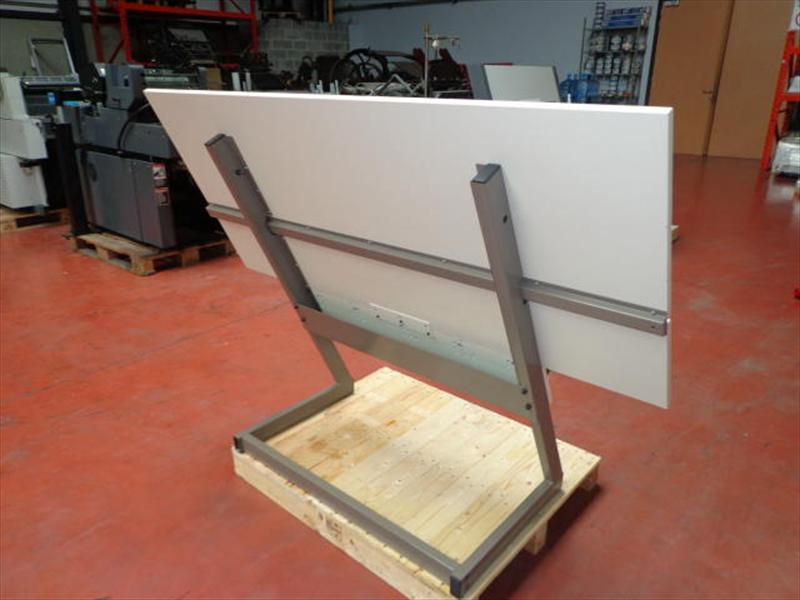

CONTROL 2000 register punch, with Heidelberg register scope, is used to punch foils or flats, printing plates, etc... with slant feed table and collapsible support stand

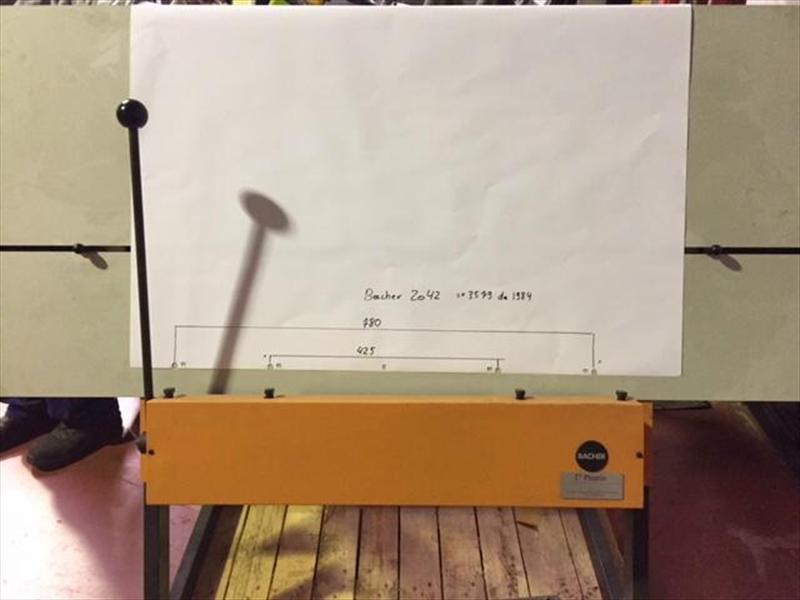

Five-hole punch : punching measure 425 & 780 mm, positioning hole at center, two U-form cut-outs, LH and RH, to line up plate on press, as well as two slotted holes, LH and RH, for stripping
Next to the U-form cut-out, LH or RH, is punched the hole for register scope
The material to be punched is lined up by centering it,
no special setting-up for various plate sizes
suitable for Speedmaster 74 & 102
net weight : 85 kg
outside measurements : 158x52x121 cm
