BACHER » 2042 1984
» Ref : lab600-00495

Zoom Images
Click to enlarge
Customer feedback :

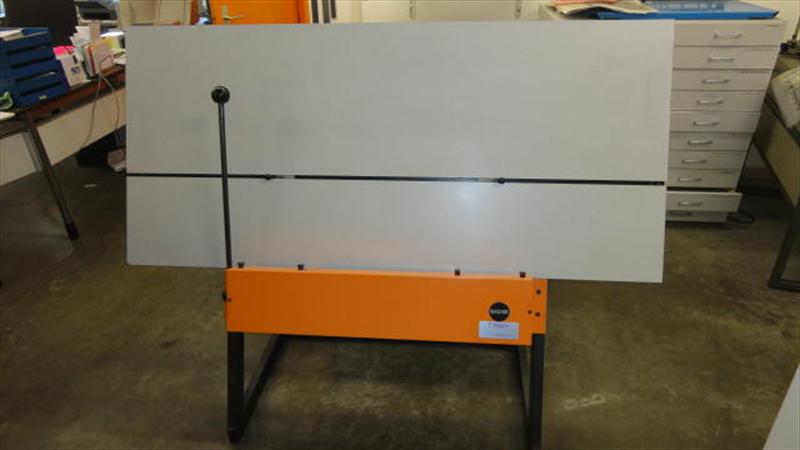

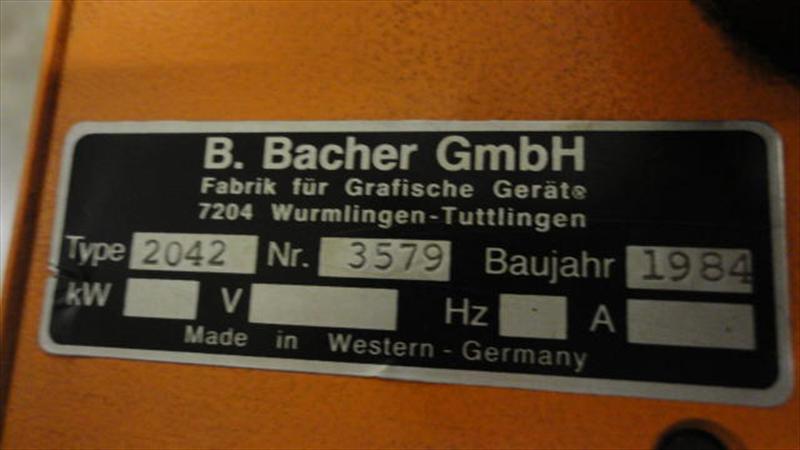

plate puncher typ 2042 n°3579 of 1984, organe model

CONTROL 2000 register punch, with Heidelberg register scope, is used to punch foils or flats, printing plates, etc...  with slant feed table and collapsible support stand

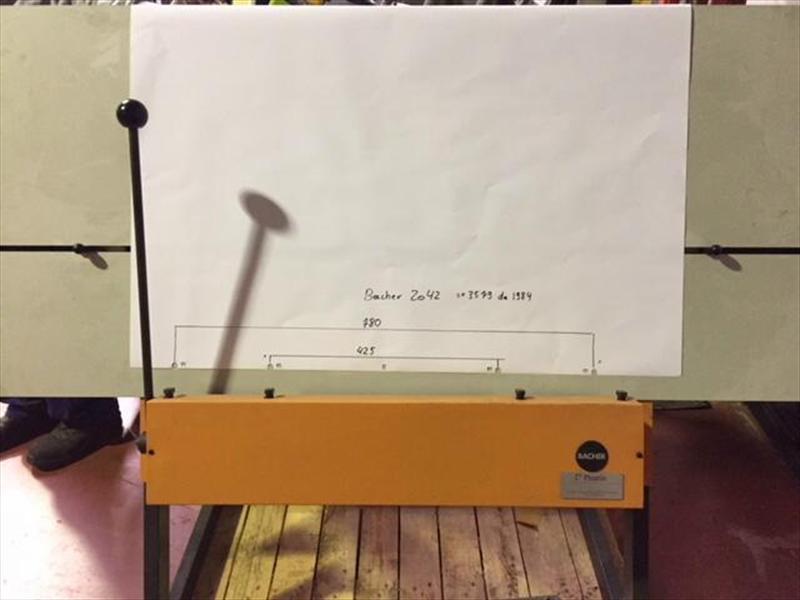

Five-hole punch : punching measure 425 & 780 mm, positioning hole at center, two U-form cut-outs, LH and RH, to line up plate on press, as well as two slotted holes, LH and RH, for stripping

Next to the U-form cut-out, LH or RH, is punched the hole for register scope

The material to be punched is lined up by centering it,
no special setting-up for various plate sizes

suitable for Speedmaster 74 & 102

net weight : 85 kg
outside measurements : 158x52x121 cm


Data sheet

Size : :
Serial Number :
availability :
Incoterms :
Spécifications
Dimensions (L x W x H in cm) :
Net weight (Kg) :
85
Year of manufacture :
